HARD TYPE DESIGN
HIGHER PRESSURE
PROFESSIONAL USE

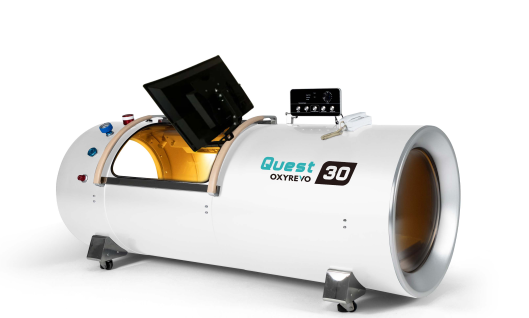

OXYREVO Hard Hyperbaric Chamber Quest30
— HIGHER PRESSURE, HARD TYPE DESIGN
OXYREVO Quest30 is a HARD shell hyperbaric oxygen chamber, made of stainless steel material (grade 304), very solid and durable. 220cm length, 75cm diameter, perfect size for personal use. It is available in 1.5ATA, 1.6ATA or up to 2.0ATA pressure specially made with thickened stainless steel and a uniquely designed door, which enhances HBOT design use. Designed with a larger, smooth roller door and a large transparent window at both ends, inside-outside operation, communication system, and digital data display screen giving a premium user experience. Designed for home and for professional use in sports clinics, wellness clinics, therapy centres and beauty spas. Now with the option of red light and near infrared therapy lights installed.
Technical Specifications
- WORKING PRESSURE
- WEIGHT
- LENGTH
- DIAMETER
- MATERIAL
- WINDOWS
- OXYGEN PURITY
- CHAMBER COLOR
- 1.5ATA/1.6ATA/2.0ATA
- 230-250KG / 507-551LBS
- 220CM / 89INCHES
- 75CM / 30INCHES
- STAINLESS STEEL
- 2 TRANSPARENT WINDOWS
- 95-97%
- WHITE / OEM AVAILABLE
OxyRevo Quest30 Hard Lying Hyperbaric Oxygen Chamber System
Contains Everything You Will Need for Your HBOT Journey – Your One-Stop HBOT Solution
–Chamber:
Inside/Outside: Pressure Gauges / Pressure Deflate Valves / Control Panels / Display Screen.
Phone Communication System.
Automatic Pressure Relief Valves.
Pressure Adjustable Switch.
Emergency Deflate Valve.
Reading Lighting LED.
Stainless Steel and Nylon Wheels.
Internal Fan.

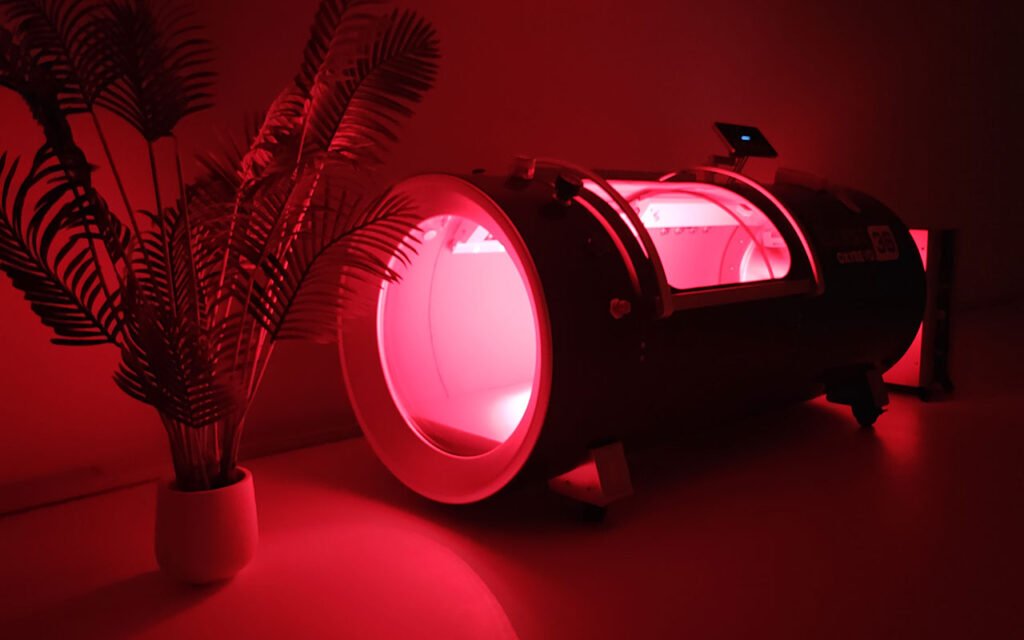

Optional Red Light and Near Infrared Therapy Lights.
Memory Foam Mattress.
–All-in-One Operating Unit Machine:
1x Oil Free Air Compressor 85L/min.
1x 10L Oxygen Concentrator 95-97% Oxygen.
2x Cooling Machines 120 L/min.
Anion Air Purifier.
Air Steriliser/Anti-Virus System.
Dual Air Filter.
Humidity Water Container.
–Accessories:
Oxygen Mask.
Spare Filters/Fuses.
Air/Oxygen Tubes.
Power Cable.
OXYREVO Premium Design
Hard Type
Stainless Steel Material, Solid and Durable
Higher Pressure
1.5ATA, 1.6ATA or 2ATA Options Available
Solid Wheels
4 x Solid Wheels at Base, Easy to Move
Emergency Valve
Quick Pressure Release in 30s for Safety
Timing System
0-120 Minutes Automatic Timer
LED Reading Light
Eyes Protected LED Inside for Reading Convenience
In-Out Communication System
Phone and Speaker Inside and Outside, Allows Easy Communication
10L Large Oxygen Capacity
10L Oxygen Concentrator with 95-97% Pure Oxygen
Internal/External Operation Control
Control Panel Inside and Outside to Operate and Control the Chamber Anytime
Internal/External Dual Pressure Display
Pressure Readings Anytime Inside and Outside
WHAT’S NEW BY OXYREVO

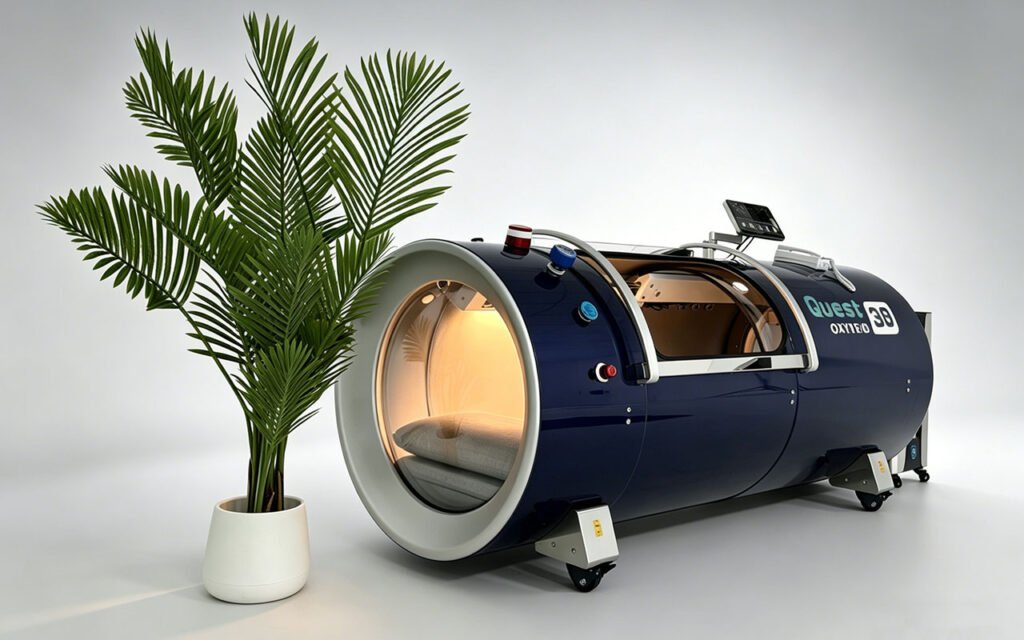

Transparent Windows Each End
OxyRevo offers a unique design with two large transparent windows located at the head and foot ends of the hyperbaric oxygen chamber. Made with aviation-grade materials and double-layered for added durability, the windows provide a larger field of view both inside and outside the chamber. Offering a more comfortable experience and reduces feelings of claustrophobia.
New Advanced Welding Process
New advanced welding and splicing processes perfectly fit the metal and polycarbonate together, and the outside is reinforced by an aluminium ring, which is firm, beautiful and won’t deform with use. The chamber body is welded by 3 pieces of different thickness stainless steel thus higher strength for higher pressure resistance and no bending risk for use over a lengthy time.
In-Out Control Panel and Screen
All hard hyperbaric chambers have two control panels, one inside and one outside, allowing users to operate the chamber yourself, no further assistance required. Also dual digital display screens inside and out show data of Temperature, Humidity, and Oxygen Purity inside the chamber via a highly precise sensor, making your operation more convenient.
Power Failure Safety System
A power failure safety system in the unit provides a safety feature if the power shuts off suddenly. The system in the hard chamber will release the pressure automatically and promptly even if the users are completely asleep. The door will drop down automatically after the chamber pressure releases, making the chamber even safer to use.
Smart Door Sensor and Lights
Operating the hyperbaric chambers with an incompletely closed door poses a safety risk that may result in harm to oneself or damage to the chamber. Our Hard Hyperbaric Chambers address this issue by incorporating a sensor lock feature that restricts operation of the chamber until the door is fully closed. Additionally, there are indicator lights located inside and outside the chamber, further enhancing its safety features.
Working Pressures Adjustable
The OxyRevo pressure switch valve, featuring an exclusive design, allows users to adjust the working pressure of the chamber at various levels ranging from 1.3/1.5/1.8/2.0ATA (with a custom option of any pressure levels you would like to set up) with the simple turn of a dial. This unique feature enables all users to initiate their hyperbaric oxygen therapy at a lower pressure level and gradually work their way up to higher levels, ensuring a more controlled and comfortable experience and for different protocols.

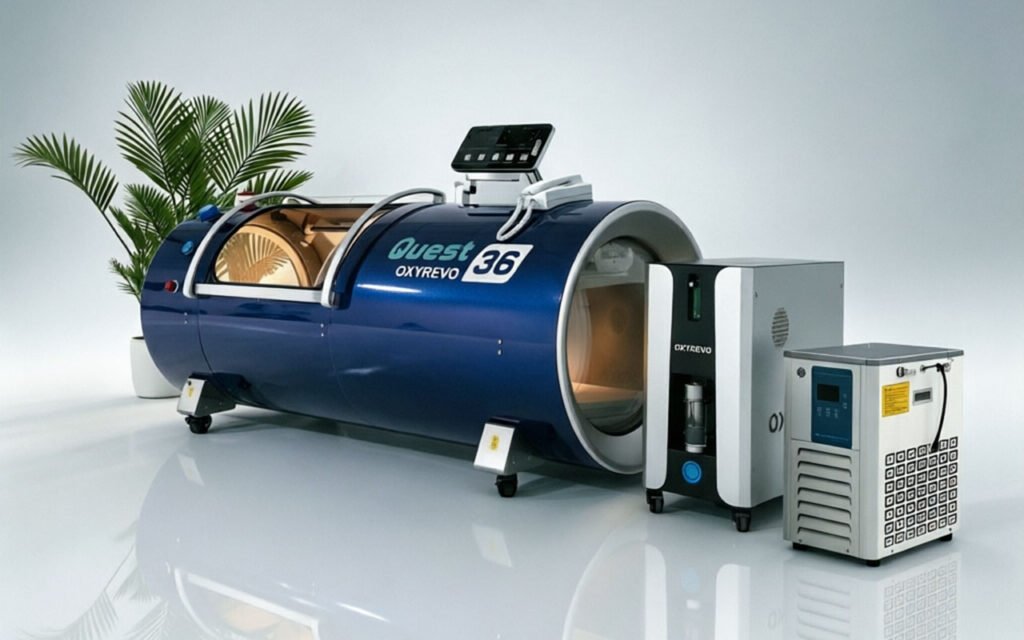

Efficient Air Cooling System
Our efficient and powerful air cooling system will remove the humidity inside the chamber, giving dry and clean air to the chamber. It also cools the incoming air which is drawn into the warm compressor box, ensuring a better comfortable experience when using the chamber in the summer. Additionally, this system is electrically driven, eliminating the need for ice water or freon and requires zero maintenance. This feature adds to the comfort and overall pleasantness when using the chamber.
Anion Air Purification and Sterilisation
The inclusion of an anion generator within the chamber ensures the effective dispersion of anions that are capable of removing 2.5 micron dust particles (PM2.5). This helps to purify the air within the chamber, resulting in a cleaner and fresher environment. Also a steriliser with water nano technology to remove bacteria and odours and also kill virus is a perfect solution for disinfection for commercial setups like therapy centres and clinics.
Hard Hyperbaric Oxygen Chamber for Lying
Stainless Steel Material, Solid and Durable.
Please see the below video to view your chamber.
We Are Proud of Our Chamber!
We understand our clients’ needs and are committed to offering the best Hyperbaric Oxygen Chamber
Transparent Windows
These windows made of high strength Polycarbonate, customised and imported from Germany (Bayer brand). Each end has two windows with an air gap, designed for durability and a longer lifespan, providing ample natural light and creating a bright and enjoyable environment for HBOT therapy, and reducing claustrophobia.
Digital Data Display Screen
Two screens, one INSIDE and one OUTSIDE. Shows data inside oxygen chamber like Oxygen Purity, Temperautre, and Humidity. Automatically controlled, makes your HBOT treatment easy and smart!
Internal Control Board
Allows the user inside to operate and control the hard oxygen chamber’s every function like, pressurisation, depressurisation, oxygen supply, dehumidification, refrigeration, lighting and fan…Safe and Convenient!
Phone Communication System
A high definition phone communication system without any noise makes users inside and people outside communication simpl. NO yelling or walkie talkie. Efficient and Clear!
Door Safety Sensor
A door safety sensor has been installed in every unit of OxyRevo Hard Hyperbaric Chambers’ door. Makes the user operation safer, and never a risk of door damage by incorrect operation.
Frequently Asked Questions
1.What are installation requirements?
The OxyRevo hard hyperbaric oxygen chamber system installation is very simple and easy, you will just need to connect the wires and tubes from the operating unit to the chamber tank and the control panel, then start to use your chamber, NO special process required.
2. Should I buy the oxygen myself?
NO, you don’t need to buy oxygen. The OxyRevo hard hyperbaric oxygen chamber includes an oxygen concentrator producing the pure oxygen (95-97%) at 10L/min continuously, you won’t need to buy or refill oxygen. Further to this you can add further concentrators in series to increase the oxygen output going into the chamber, so for example, you could have 20L/min or 30L/min should you choose.
