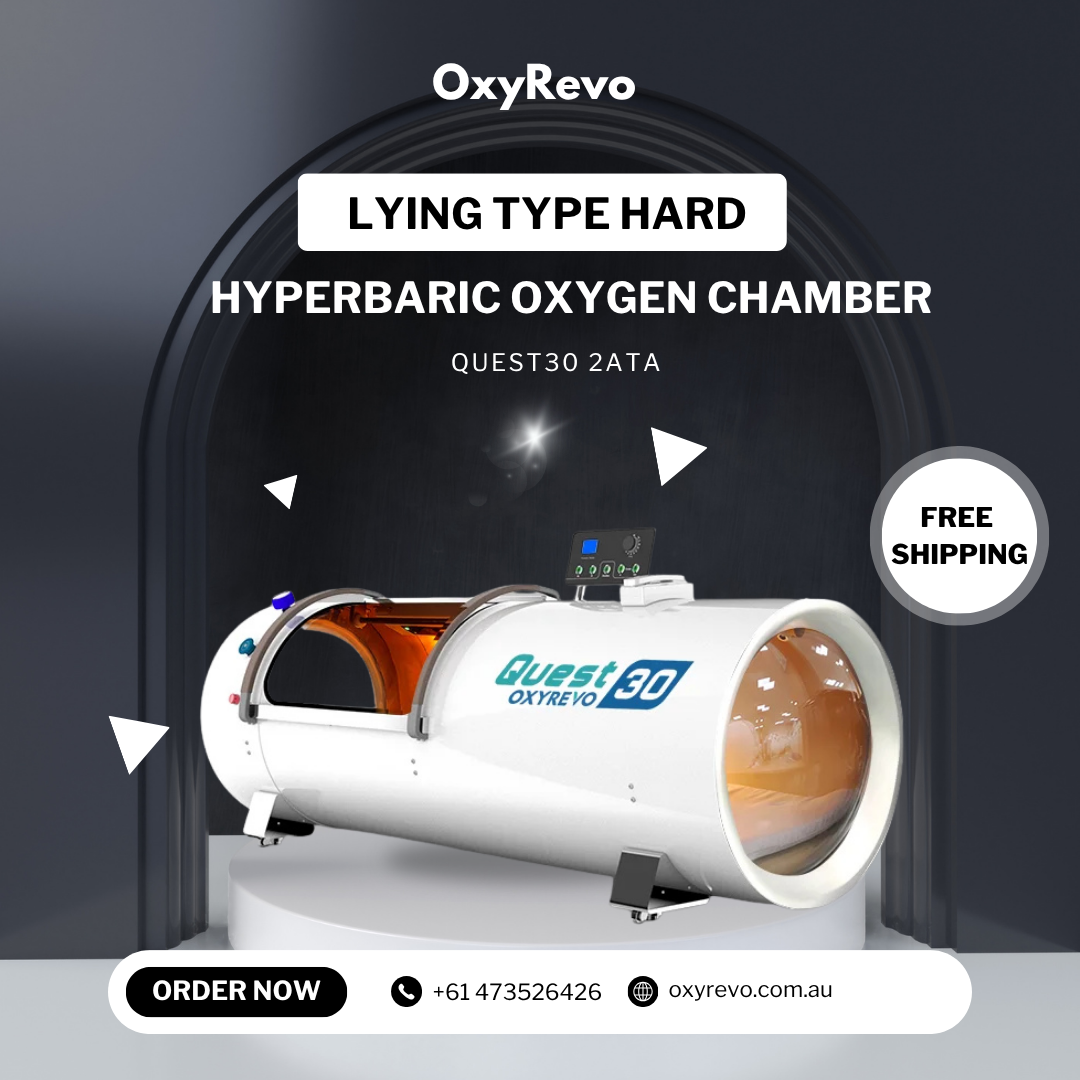

OxyRevo Lying Type Hard Hyperbaric Chamber Quest30 2ATA

The OxyRevo Quest30 lying type hard hyperbaric chamber delivers higher pressure in a space-efficient, clinic-grade format. Built from 304 stainless steel, the shell is solid and durable; moreover, the 220 cm length and 75 cm diameter create a niche footprint that suits homes, wellness studios, and therapy rooms. In addition, a large, smooth roller door and transparent windows at both ends simplify entry while maintaining clear visibility and two-way communication throughout the session.

Because protocols and user comfort both matter, the Quest30 supports a working pressure of 2.0 ATA for advanced routines. As a result, facilities can implement higher-intensity HBOT programs with confidence. Furthermore, OxyRevo’s specialised custom made Oxygen Concentrator with patented Oxygen Boosting Technology keeps oxygen purity at 95–97% @ 10 L/min even at elevated pressure; therefore, delivery remains stable and efficient from start to finish. Consequently, clients experience consistent performance across short and extended sessions.

Daily operation is deliberately intuitive and safe. The system provides dual control panels and dual digital display screens—inside and outside—so temperature, humidity, and oxygen purity are visible in real time. Moreover, a power-failure safety system automatically releases internal pressure and drops the door after depressurisation, which significantly enhances user protection. Additionally, a smart door sensor prevents operation unless the door is fully closed, while status indicator lights provide immediate visual feedback for operators and users.

Comfort and air quality are handled comprehensively. The all-in-one unit integrates an oil-free 85 L/min compressor, two 120 L/min dehumidification cooling machines, anion air purification, and air sterilisation/anti-viral technology. Consequently, the chamber maintains a dry, cool, and fresh internal atmosphere without ice or freon. Likewise, dual sintered filtration on both the machine and chamber sides, an internal circulation fan, and a soft LED reading light elevate the in-chamber experience during longer runs.

Lying Type Hard Hyperbaric Chamber

Build quality extends to every structural joint. New advanced welding and splicing techniques tightly join stainless steel and polycarbonate; moreover, external aluminium reinforcement rings increase integrity under continuous use. Laser-etched valve markings resist wear, stainless-steel and nylon wheels aid repositioning, and the pressure switch supports preset customisation (e.g., 1.3/1.5/1.8/2.0 ATA) for different protocols. Additionally, red and near-infrared therapy lights can be added, while colour options include white, black, silver, grey, and dark blue, with others available on request.

The OxyRevo Quest30 lying type hard hyperbaric chamber is backed by a 3-year non-commercial warranty with an extension option. Each unit is made to order with an estimated lead time of up to 6 weeks; shipping, customs, and duties are included, and door-to-driveway delivery is standard. Although full payment is required before production, Handypay financing is available from ~$50/week (subject to approval). To proceed, please provide your shipping address, email, and mobile number for the freight team. For questions or customisation, contact WhatsApp +61 473 526 426 or contact@oxyrevo.com.au. Finally, this chamber is intended for wellness and recovery use and is not a medical device; therefore, always follow OxyRevo’s safety guidelines.

Key Features

• Lying type hard hyperbaric chamber (2.0 ATA) with a 304 stainless-steel body

• Compact interior 220 × 75 cm ideal for home and professional rooms

• Smooth roller door plus large end windows for access, light, and comfort

• Dual control panels and dual digital display screens (inside & outside)

• Power-failure safety system auto-depressurises and drops the door

• Smart door sensor; status indicator lights for confident operation

• Patented Oxygen Boosting Technology (95–97% @ 10 L/min)

• Oil-free 85 L/min compressor; 2 × 120 L/min dehumidification cooling units

• Anion purification + sterilisation/anti-viral tech; dual PE sintered filtration

• Internal circulation fan and LED reading light

• Advanced welding with aluminium reinforcement rings

• Stainless-steel & nylon wheels for easier movement

• Customisable pressure presets (1.3/1.5/1.8/2.0 ATA)

• Multiple colours available

• Optional:

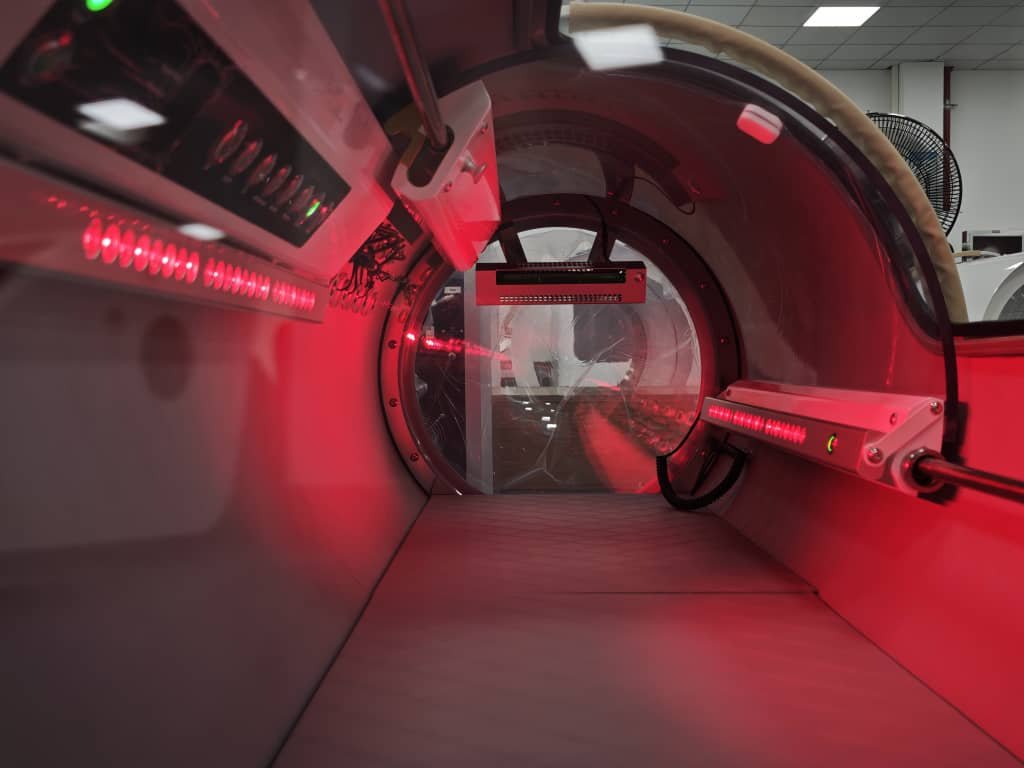

  • red & near-infrared therapy light panel (optional dual panel)

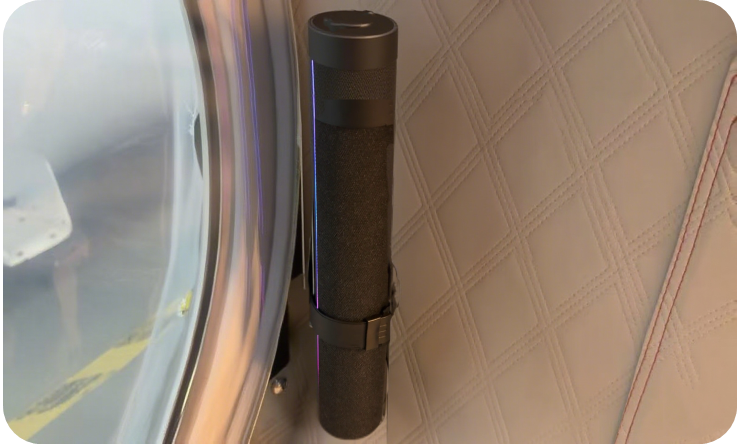

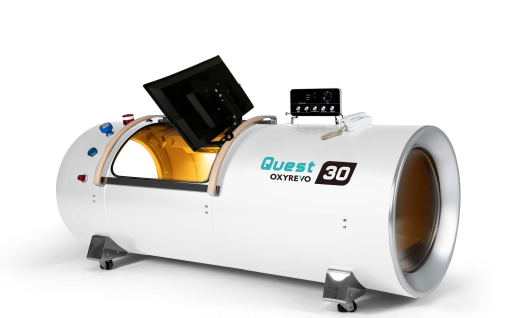

  • external TV bracket and internal speaker

  • built-in breathing system (BIBS) mask system

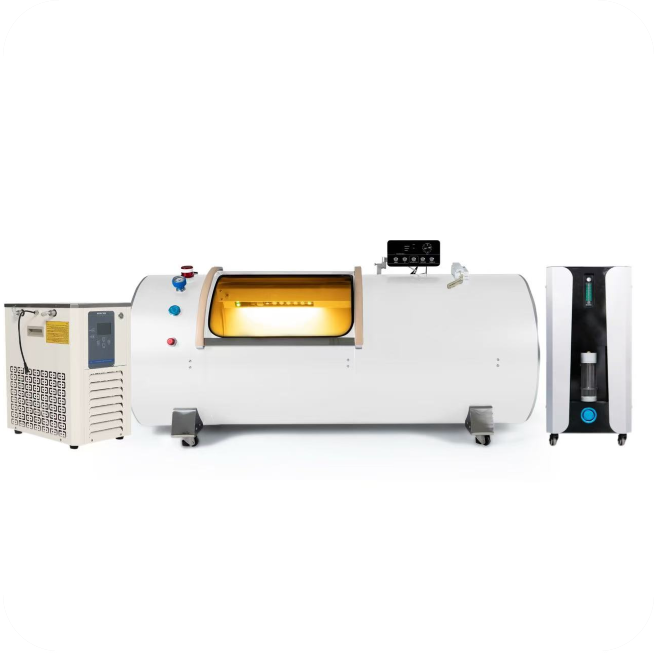

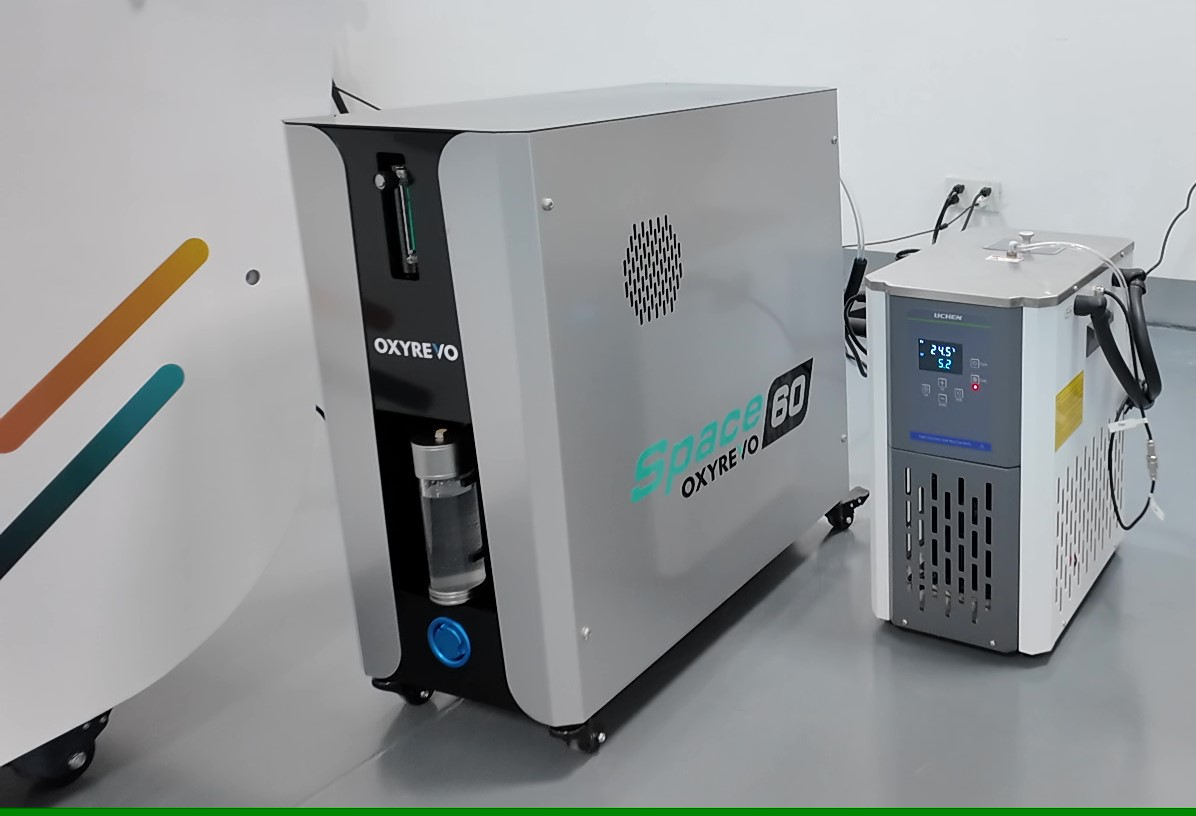

  • water chiller air-conditioner cooler

  • 15 LPM concentrator

  • anti-static mat

  • Please note if the chamber is to be used in a non air-conditioner room it is recommended the option water chiller air-conditioner be purchased

Technical Specifications

• Working Pressure: 2.0 ATA

• Weight: ~250 kg / 551 lbs

• Dimensions: 220 cm (L) × 75 cm (Ø); door entry height ~60 cm

• Minimum doorway width to pass: ~85 cm

• Chamber Material: 304 stainless steel

• Window Material: Polycarbonate (Bayer, Germany)

• Oxygen Purity: 95–97% @ 10 L/min; optional standalone 15 L/min concentrator, option of 20 L/min

• Controls/Displays: Internal & external panels, digital screens (Temp/Humidity/O₂)

• Compressor: 85 L/min, oil-free, low maintenance

• Cooling: 2 × 120 L/min electric dehumidification cooling machines

• Filtration: Dual filters (machine + chamber), anion purifier, steriliser/anti-virus

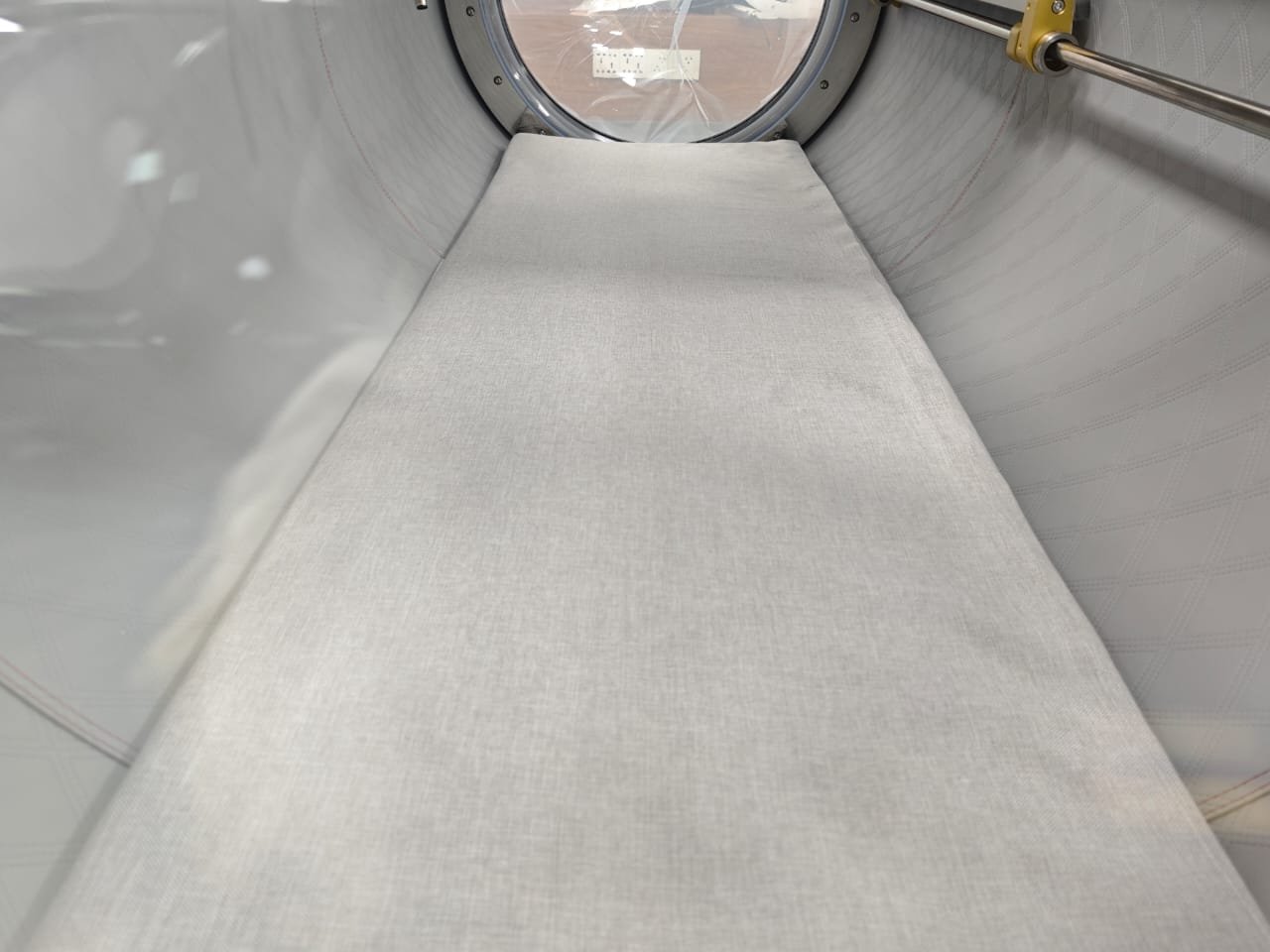

• Extras included as standard: 0–120 min timer, LED reading light, internal fan, phone intercom, removable internal base and memory foam mattress

What’s Included

Chamber & Controls

• Inside/Outside: Pressure gauges, deflate valves, control panels, digital display screens

• Phone communication system (in/out)

• Automatic pressure relief valves

• Pressure adjustable switch

• Emergency deflation valve

• LED reading light

• Stainless-steel & nylon wheels

• Internal fan

• Memory-foam mattress

All-in-One Operating Unit

• 1× oil-free air compressor (85 L/min)

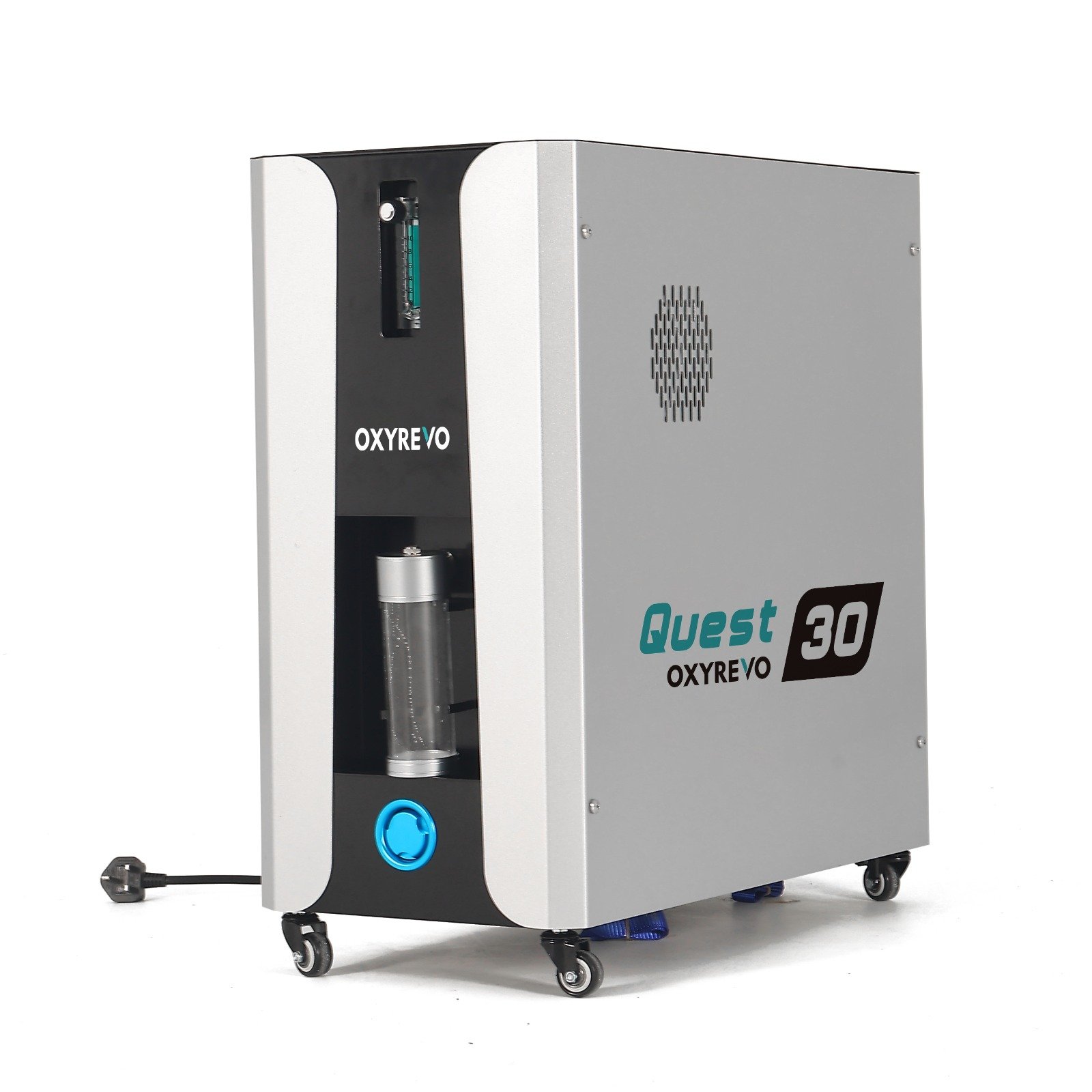

• 1× oxygen concentrator (10 L/min, 95–97%) — optional 15 L/min

• 2× cooling dehumidification machines (120 L/min)

• Anion air purifier

• Air steriliser/anti-virus system

• Dual air filter

• Humidity water container

Accessories

• Oxygen mask

• Spare filters/fuses

• Air/oxygen tubing

• Power cable

Warranty, Shipping & Payment

• 3-year non-commercial / 2 year commercial warranty (extendable)

• Made to order; delivery time up to 12 weeks

• Door-to-driveway delivery; shipping + customs/duties included

• Full payment prior to production; finance from ~$50/week via Handypay

Payment & Delivery

• Payment: Full payment before production (finance from ≈ $50/week via Handypay) CLICK HERE

• Lead Time: Made to order (≈ 6 weeks)

• Delivery: Door-to-door service to driveway/garage only

• Shipping & Duties: Included (customs fees/taxes covered)

• To Order: Provide shipping address, email & mobile for freight updates

• Contact: WhatsApp +61 473 526 426 | Email contact@oxyrevo.com.au
