OxyRevo Lying Type Hard Hyperbaric Chamber Quest36 1.5/1.6ATA

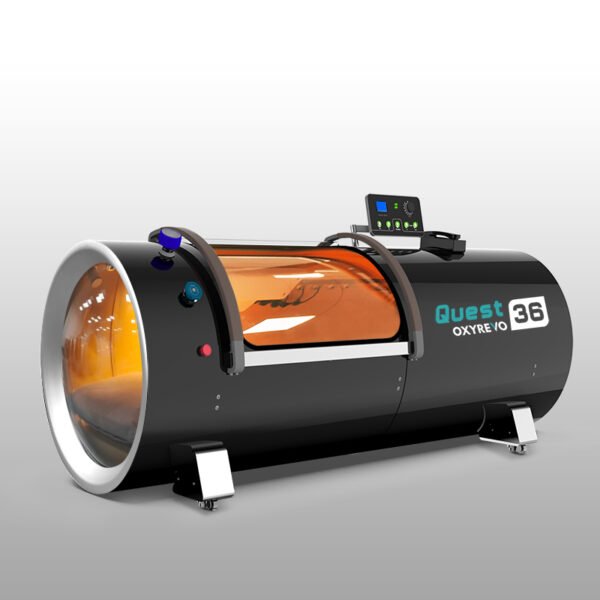

The OxyRevo Quest36 hard hyperbaric chamber seamlessly combines higher working pressure with a durable, clinic-grade build designed for professional use. Constructed from 304 stainless steel, the chamber’s shell is engineered for exceptional strength and longevity. Moreover, its 220 cm length and 90 cm diameter provide generous space for one adult or an adult and a child. In addition, the large side door and two transparent polycarbonate windows make entry and exit simple, while ensuring clear visibility and effortless communication throughout every session.

Users can choose between 1.5 ATA and 1.6 ATA operation, depending on their specific therapy protocol. As a result, facilities can begin at lower pressure levels and gradually increase intensity as clients adapt. Furthermore, OxyRevo’s specialised custom made Oxygen Concentrator with patented Oxygen Bursting Technology maintains 95–97% oxygen purity at 10 L/min, even under high pressure. Therefore, oxygen delivery remains stable and efficient, ensuring consistent therapeutic benefits across all sessions. Consequently, the Quest36 supports both short and long-term HBOT programs with unmatched reliability.

In daily operation, the Quest36 is intuitive, safe, and easy to use. It includes dual control panels and digital display screens positioned both inside and outside the chamber. As a result, temperature, humidity, and oxygen purity levels can be monitored in real time. Moreover, the power-failure safety system automatically releases internal pressure and lowers the door after depressurisation, significantly improving safety. Additionally, the smart door sensor prevents operation unless the door is fully closed, while built-in indicator lights provide clear visual cues for safe and confident use.

When it comes to air quality and comfort, the Quest36 performs exceptionally well. The integrated air system combines an oil-free 85 L/min compressor, two 120 L/min dehumidification cooling machines, anion air purification, and sterilisation and anti-viral technology. Consequently, users enjoy a consistently dry, cool, and clean atmosphere without relying on ice or freon. Besides that, dual sintered filtration on both the machine and chamber sides ensures air purity at all times. Likewise, an internal fan circulates fresh air evenly, while a soft LED reading light improves comfort during long sessions.

Hard Hyperbaric Chamber

The build quality extends to every small detail. The Quest36 utilises advanced welding and splicing techniques that securely join metal and polycarbonate components for maximum durability. Furthermore, external aluminium reinforcement rings increase the chamber’s strength and stability under pressure. Additionally, laser-etched valve markings resist wear and tear, ensuring long-lasting visibility. The chamber also features solid stainless-steel and nylon wheels, making it easy to move when required. For flexibility, the pressure adjustment switch supports several presets (1.3, 1.4, 1.5, or 1.6 ATA), and custom options can be configured as needed. In addition, optional red and near-infrared therapy lighting can be added for enhanced wellness benefits. Aesthetic customisation is also available with colour options including white, black, silver, grey, and dark blue — with more colours available upon request.

The OxyRevo Quest36 hard hyperbaric chamber is supported by a three-year non-commercial warranty with the option to extend coverage for long-term use. Each chamber is made to order, ensuring precision and quality in every build. Moreover, the estimated delivery time is up to 12 weeks, allowing for customisation and thorough testing before delivery. Shipping, customs, and duties are fully included, and door-to-driveway delivery ensures a smooth logistics process. Although full payment is required prior to production, flexible financing options starting from $50 per week are available through Handypay (subject to approval).

To place your order, please provide your shipping address, email, and mobile number for freight coordination. For inquiries or assistance, contact WhatsApp +61 473 526 426 or email contact@oxyrevo.com.au. Finally, please note that this chamber is designed for wellness and recovery applications and is not a medical device. Therefore, always follow OxyRevo’s official safety guidelines during operation.

Key Features

• Hard hyperbaric chamber with 304 stainless-steel body (durable & clinic-grade)

• Higher pressure options: 1.5 ATA or 1.6 ATA (customizable presets, e.g., 1.3/1.4/1.5/1.6)

• Spacious interior: 220 × 90 cm — suitable for one adult or adult + child

• Large door + 2 transparent windows for visibility and easy access

• Dual control panels + dual digital displays (inside & outside)

• Power-failure safety system auto-depressurises and drops door

• Smart door sensor prevents operation unless fully closed

• Emergency quick-release valve (≈60 s) and automatic pressure relief

• Anion purification & sterilisation; anti-viral tech; dual filtration

• Two 120 L/min dehumidification cooling units + internal fan for air circulation

• Patented Oxygen Boosting Technology for stable oxygen output

• LED reading light, in/out communication phone & speaker

• Solid stainless-steel and nylon wheels for easier movement

• Customisation available (pressure presets, colours, options)

• Optional:

  • red & near-infrared therapy light panel (optional dual panel)

  • external TV bracket and internal speaker

  • built-in breathing system (BIBS) mask system

  • water chiller air-conditioner cooler

  • 15 LPM concentrator

  • anti-static mat

  • Please note if the chamber is to be used in a non air-conditioner room it is recommended the option water chiller air-conditioner be purchased

Technical Specifications

• Working Pressure: 1.5 ATA or 1.6 ATA (advise your choice; custom presets available)

• Weight: ~260 kg / 573 lbs

• Dimensions: 220 cm (L) × 90 cm (Ø); door entry height ~60 cm

• Minimum doorway width to pass: ~99 cm (without removing attachments)

• Chamber Material: 304 stainless steel

• Window Material: Polycarbonate (Bayer, Germany)

• Oxygen Purity: 95–97% @ 10 L/min (optional standalone 15 L/min concentrator, also option of 20 L/min)

• Controls/Displays: Internal & external panels, digital screens (Temp/Humidity/O₂ purity)

• Compressor: 85 L/min, oil-free, low maintenance

• Cooling: 2 × 120 L/min electric dehumidifier cooling machines

• Filtration: Dual filters (machine + chamber); anion purifier; steriliser/anti-virus system

• Additional included as standard:  timer system to 120min, LED reading light, internal fan, phone intercom, removable internal base and memory foam mattress

What’s Included

Chamber & Controls

• Inside/Outside: Pressure gauges, deflate valves, control panels, digital display screens

• Phone communication system (in/out)

• Automatic pressure relief valves

• Pressure adjustable switch

• Emergency deflate valve

• LED reading light

• Stainless steel & nylon wheels

• Internal air-circulation fan

• Memory-foam mattress

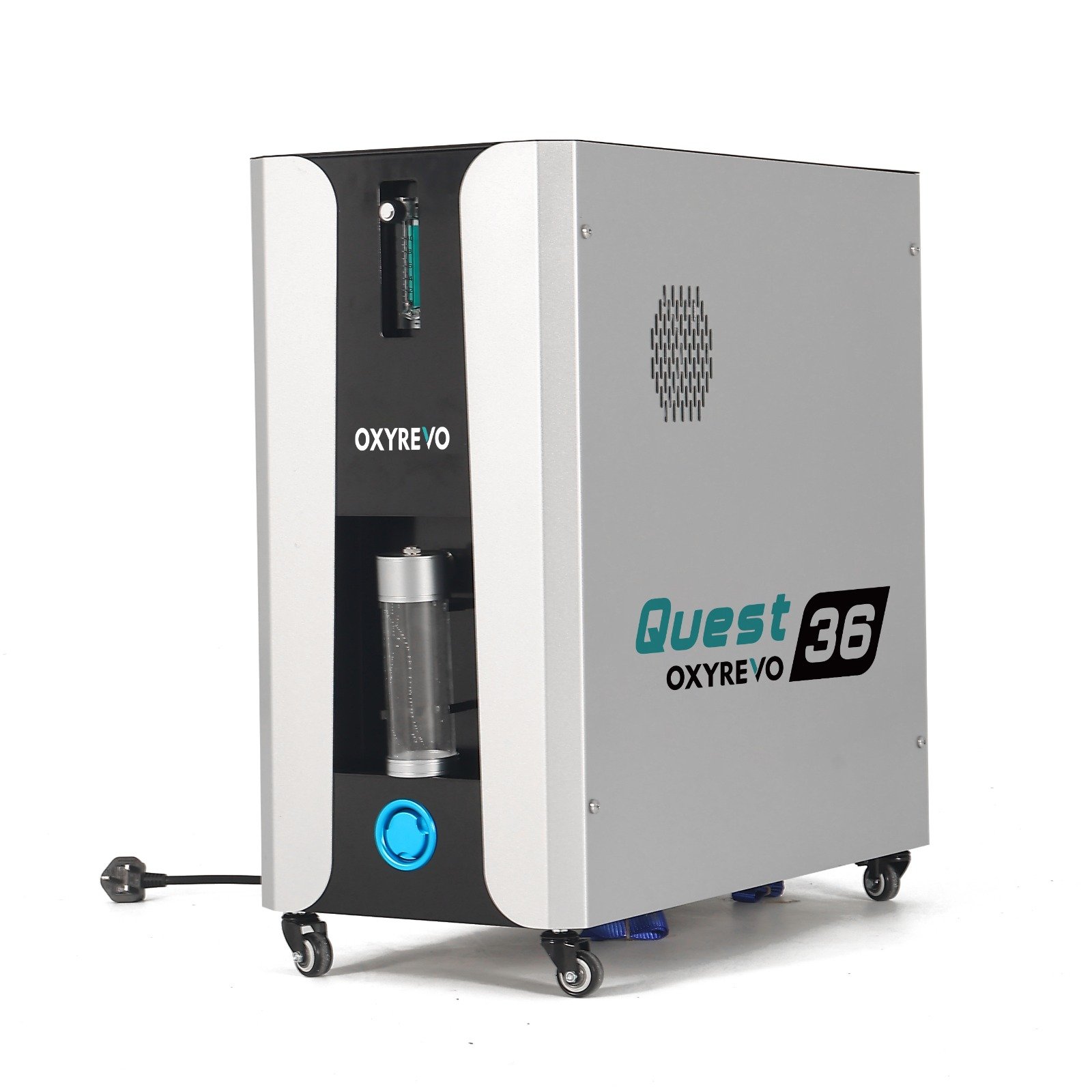

All-in-one Operating Unit

• 1× oil-free air compressor (85 L/min)

• 1× oxygen concentrator (10 L/min, 95–97%) — optional standalone 15 L/min

• 2× cooling dehumidifier machines (120 L/min)

• Anion air purifier

• Air steriliser/anti-virus system

• Dual PE sintered air filters

• Humidity water container

Accessories

• Oxygen mask

• Spare filters/fuses

• Air/oxygen tubing

• Power cable

• User manual

Warranty, Shipping & Payment

• 3-year non-commercial / 2 year commercial warranty (extendable)

• Made to order; typical delivery time up to 12 weeks

• Door-to-driveway delivery; shipping + customs/duties included

• Full payment prior to production; finance from ~$50/week via Handypay

Payment & Delivery

• Payment: Full payment before production (finance from ≈ $50/week via Handypay) CLICK HERE

• Lead Time: Made to order (≈ 6 weeks)

• Delivery: Door-to-door service to driveway/garage only

• Shipping & Duties: Included (customs fees/taxes covered)

• To Order: Provide shipping address, email & mobile for freight updates

• Contact: WhatsApp +61 473 526 426 | Email contact@oxyrevo.com.au
