OxyRevo Lying Type Hard Hyperbaric Chamber Quest36 2ATA

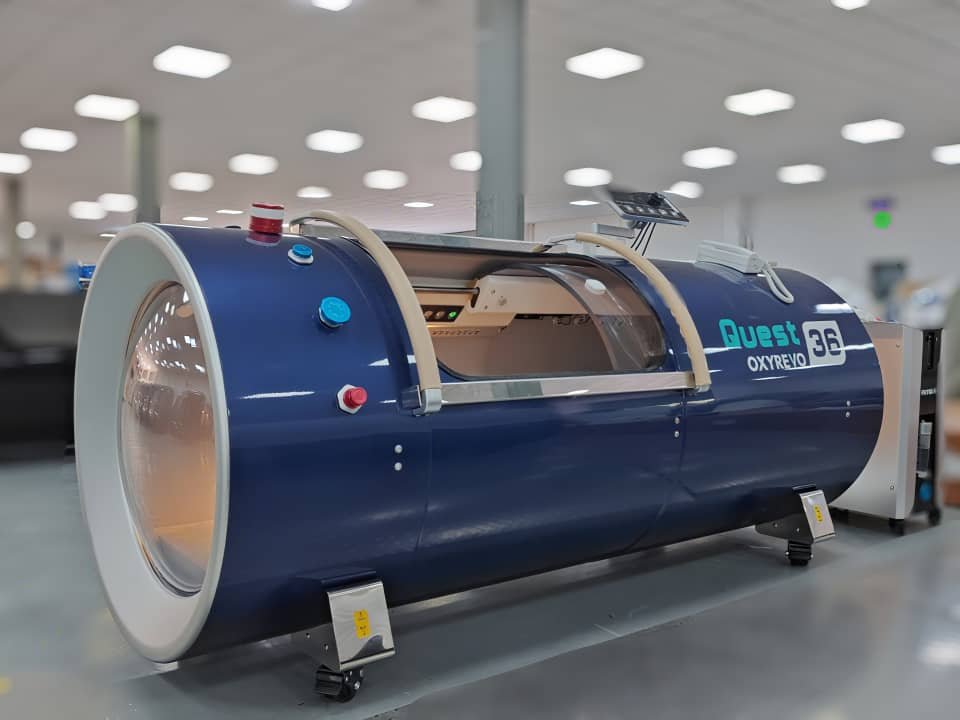

The OxyRevo Quest36 2.0 ATA hard hyperbaric chamber is engineered for facilities that demand higher pressure alongside uncompromising safety. Built from 304 stainless steel, the shell delivers exceptional strength and durability; furthermore, its 220 cm length and 90 cm diameter create ample space for a single adult or an adult and a child. In addition, a large side door and two transparent polycarbonate windows simplify entry and exit while preserving visibility and clear communication.

Because protocols vary, the Quest36 supports a working pressure of 2.0 ATA for advanced use cases. As a result, clinics can execute higher-intensity HBOT programs with confidence. Furthermore, OxyRevo’s patented Oxygen Bursting Technology maintains 95–97% oxygen at 10 L/min even at elevated pressure; therefore, oxygen delivery remains stable and efficient throughout the session. Consequently, users experience consistent performance from start to finish.

Daily operation is deliberately intuitive and safe. The chamber features dual control panels and dual digital display screens—inside and outside—showing temperature, humidity, and oxygen purity in real time. Moreover, a power-failure safety system automatically releases pressure and drops the door after depressurization, which significantly enhances user protection. Additionally, a smart door sensor locks out operation unless the door is fully closed, while status indicator lights provide immediate visual feedback.

Hard Hyperbaric Chamber

Air quality and comfort are addressed comprehensively. The integrated system combines an oil-free 85 L/min compressor, two 120 L/min cooling machines, anion air purification, and air sterilisation/anti-viral technology. Consequently, the chamber maintains a dry, cool, and fresh internal atmosphere without ice or freon. Likewise, dual filtration on both the machine and chamber sides, together with an internal circulation fan and a soft LED reading light, further improves the in-chamber experience during longer sessions.

Build quality extends to every detail. New advanced welding and splicing techniques tightly join stainless steel and polycarbonate; moreover, external aluminium reinforcement rings increase structural integrity under pressure. Laser-etched valve markings resist wear for long-term clarity, while solid stainless-steel wheels make positioning easier and safer. For flexibility, pressure presets can be customized (e.g., 1.3/1.5/1.8/2.0 ATA) to match your protocols; in addition, red and near-infrared therapy lights can be integrated by request. Aesthetic options include white, black, silver, grey, and dark blue, with further colours available.

The OxyRevo Quest36 2.0 ATA hard hyperbaric chamber is supported by a 3-year warranty with an extension option. Each unit is made to order with an estimated lead time of up to 12 weeks; shipping, customs, and duties are included, and door-to-driveway delivery is standard. Although full payment is required before production, Handypay financing is available from ~$50 per week (subject to approval). To proceed, please provide your shipping address, email, and mobile number for the freight team. For questions or customization, contact WhatsApp +61 473 526 426 or contact@oxyrevo.com.au. Finally, note that this chamber is intended for wellness and recovery applications and is not a medical device; therefore, always follow OxyRevo’s official safety guidelines.

Key Features

• 2.0 ATA hard hyperbaric chamber with 304 stainless-steel shell (clinic-grade)

• Spacious 220 × 90 cm interior fits one adult or adult + child

• Large door + two windows for visibility and easy access

• Dual control panels + dual digital screens (inside/outside)

• Power-failure safety system auto-depressurizes and drops door

• Smart door sensor; indicator lights for clear status

• Patented Oxygen Bursting Technology (95–97% @ 10 L/min)

• Oil-free 85 L/min compressor; 2 × 120 L/min cooling units

• Anion purification + sterilisation/anti-viral tech; dual filtration

• Internal circulation fan and LED reading light

• Advanced welding with aluminium reinforcement rings

• Solid stainless-steel wheels for easier movement

• Customizable pressure presets (e.g., 1.3/1.5/1.8/2.0 ATA)

• Optional red & near-infrared therapy integration; multiple colours

Technical Specifications

• Working Pressure: 2.0 ATA

• Weight: ~350 kg / 771 lbs

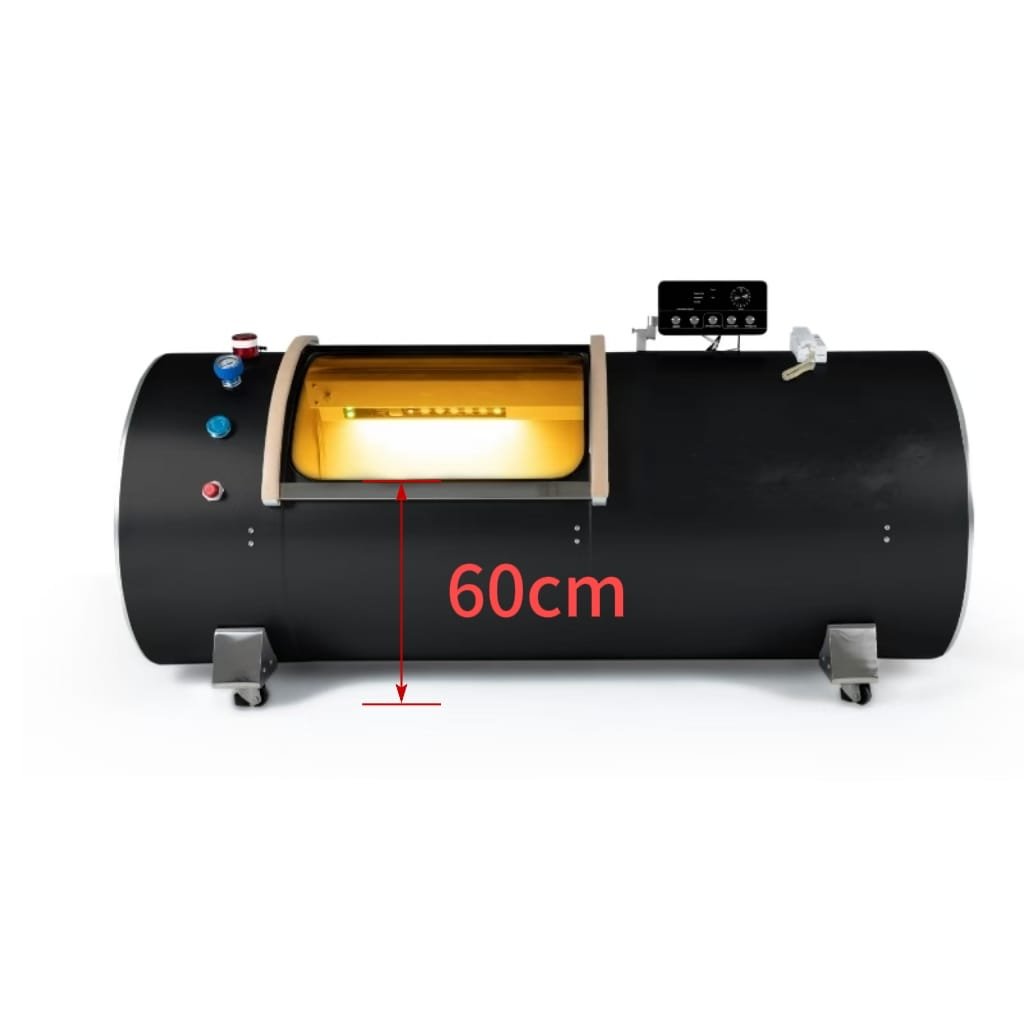

• Dimensions: 220 cm (L) × 90 cm (Ø); door entry height ~60 cm

• Minimum doorway width to pass: ~99 cm (no attachment removal)

• Chamber Material: 304 stainless steel

• Window Material: Polycarbonate (Bayer, Germany)

• Oxygen Purity: 95–97% @ 10 L/min; optional standalone 15 L/min concentrator

• Controls/Displays: Internal & external panels, digital screens (Temp/Humidity/O₂)

• Compressor: 85 L/min, oil-free, low maintenance

• Cooling: 2 × 120 L/min electric cooling machines

• Filtration: Dual filters (machine + chamber), anion purifier, steriliser/anti-virus

• Extras: 0–120 min timer, LED reading light, internal fan, in/out comms

What’s Included

Chamber & Controls

• Inside/Outside: Pressure gauges, deflate valves, control panels, digital display screens

• Phone communication system (in/out)

• Automatic pressure relief valves

• Pressure adjustable switch

• Emergency deflate valve

• LED reading light

• Stainless steel & nylon wheels

• Internal fan

• Optional red & near-infrared therapy lights

• Memory-foam mattress

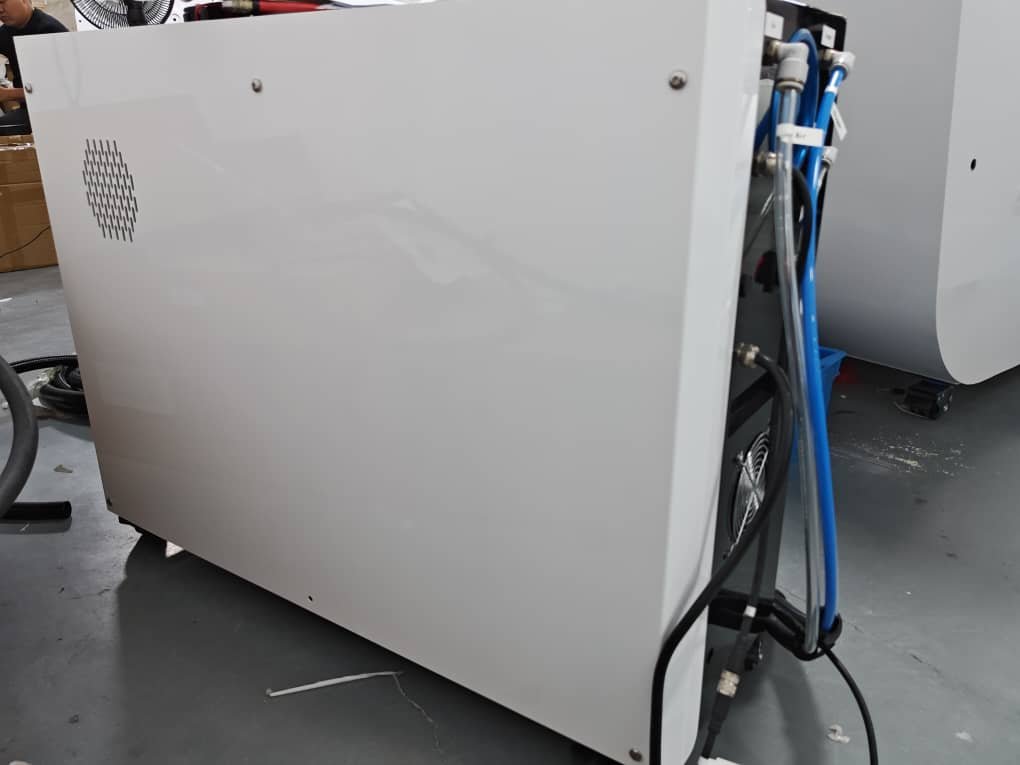

All-in-one Operating Unit

• 1× oil-free air compressor (85 L/min)

• 1× oxygen concentrator (10 L/min, 95–97%) — optional 15 L/min

• 2× cooling machines (120 L/min)

• Anion air purifier

• Air steriliser/anti-virus system

• Dual air filter

• Humidity water container

Accessories

• Oxygen mask

• Spare filters/fuses

• Air/oxygen tubing

• Power cable

Warranty, Shipping & Payment

• 3-year warranty (extendable)

• Made to order; lead time up to 12 weeks

• Door-to-driveway delivery; shipping + customs/duties included

• Full payment before production; finance from ~$50/week via Handypay

Payment & Delivery

• Payment: Full payment before production (finance from ≈ $50/week via Handypay) CLICK HERE

• Lead Time: Made to order (≈ 6 weeks)

• Delivery: Door-to-door service to driveway/garage only

• Shipping & Duties: Included (customs fees/taxes covered)

• To Order: Provide shipping address, email & mobile for freight updates

• Contact: WhatsApp +61 473 526 426 | Email contact@oxyrevo.com.au
