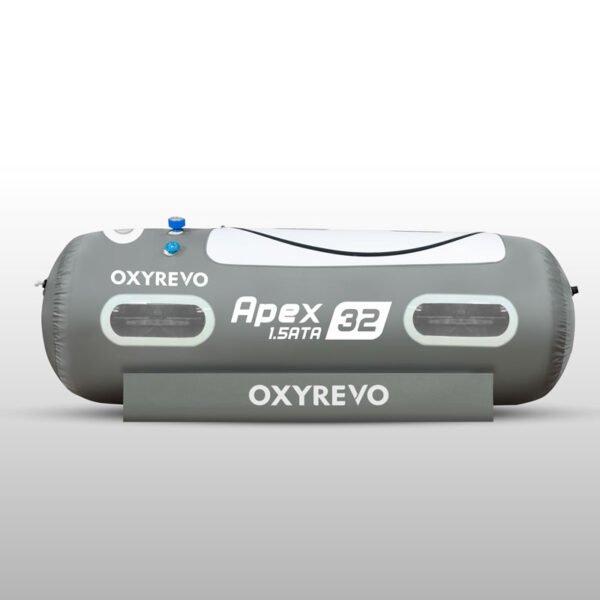

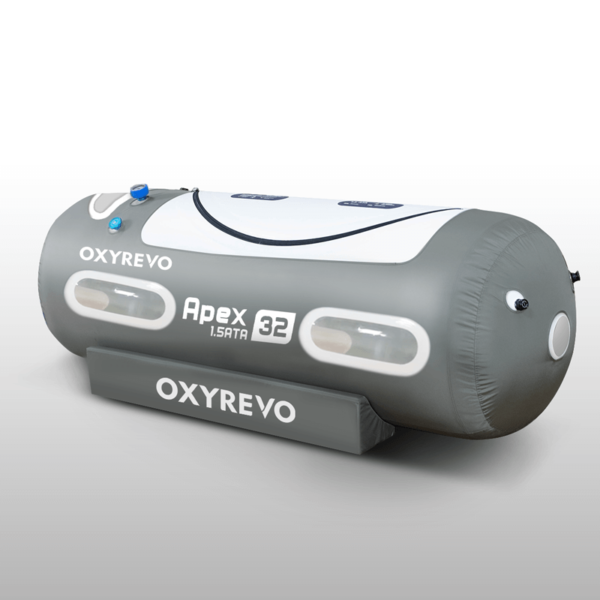

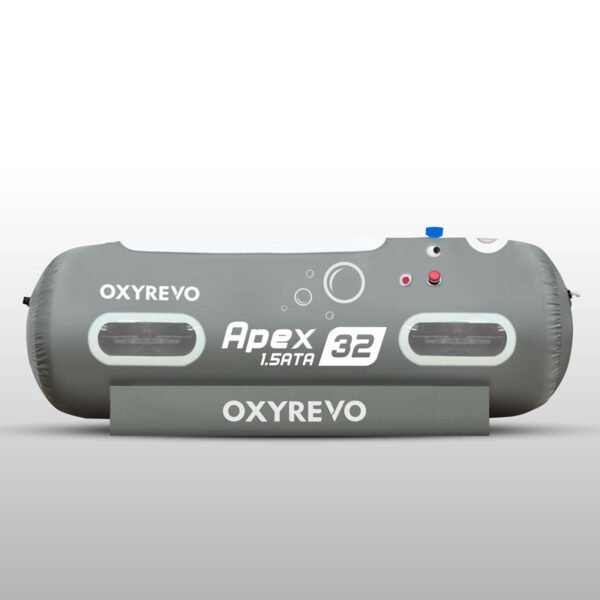

OxyRevo Lying Type Soft Hyperbaric Chamber Apex32 1.5ATA

Technical Specifications
WORKING PRESSURE: 1.5ATA – variable pressure valve allows operating pressures of 1.2/1.3/1.4/1.5ATA
CHAMBER WEIGHT: 15KG / 33LBS
LENGTH: 230CM / 90INCHES​
DIAMETER: 80CM / 32INCHES
WINDOWS: 7 LARGE DOUBLE LAYERED WINDOWS
MATERIAL: CUSTOM MADE 5 PLY PU
SOUND LEVEL: ≤50 DB (operating)
COVER COLOUR: include grey, black, dark blue, red, light blue, pink, green, purple, gold (other available at request)
PATENTED Oxygen Bursting Technology
OPTIONAL: Red light and near infrared therapy devices installed

3 YEAR WARRANTY – option to purchase extended warranty

OXYREVO Premium Design
Environmentally Friendly Material: NON-Glue, NON-Toxic – High strength non-toxic environmentally friendly custom made (5 layer) polyurethane material. Eco friendly and durable.
Custom Valve: All Valves are Custom Designed and Made by OxyRevo
Dual YKK Zippers: Dual Zippers, Inside and Outside – The world’s FIRST exclusive curved zipper patent design, using ergonomics and the principle of zipper inertia in the design, saving 70% of labour than straight zippers.
Memory Foam Slow Rebound Mattress: Decompress Your Body and Improves your Sleep – Very Comfortable
Dual Air Filters: Two air filters – inside and outside – Machine side and chamber side.
Internal Frame: Hold Chamber’s Structure Before Inflation – Stainless Steel – No Plastic
Emergency Deflate Valve: Safety Valve to Deflate Chamber Quicker in an Emergency

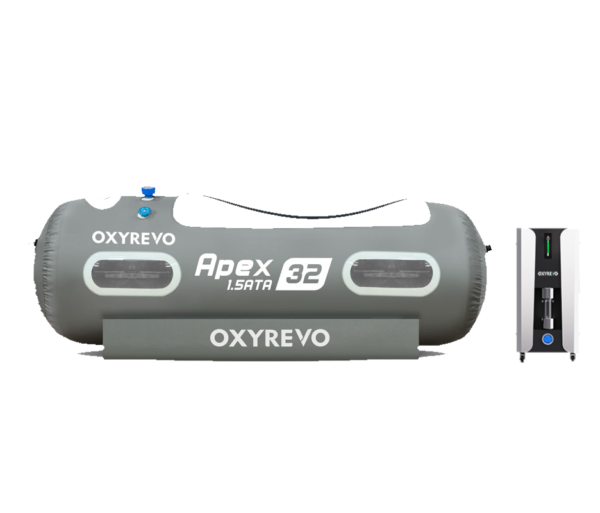

10L Large Oxygen Capacity: 1-10L/min adjustable Oxygen Concentrator (with Oxygen Burst Technology) with 95-97% Oxygen continuous production, no need for oxygen tanks (can combine more Oxygen Compressors to increase output to 20L\min or more).
Internal/External Dual Pressure Display: Pressure Readings Available Inside and Outside
Internal/External Pressure Release Control: Release Pressure Available Inside and Outside
Air Flow Compressor 85L/min: Oil free no maintenance air compressor
Air Cooler 120L/min: remove humidity from within the chamber effectively, no maintenance
Air Purification, Air Sterilisation and Anti-Viral Technology not seen in any other chamber

OxyRevo Patented Oxygen Bursting Technology
OxyRevo offers custom made patented compressor technology which allows for 10lpm of oxygen to be delivered at all pressures up to 2ATA. Most other compressors on the market reduce oxygen output as the pressure inside the chamber goes up, with many only delivering 3-4lpm of oxygen. For greatest physiological benefit a minimum of 6lpm of oxygen output is required.
Unique Curved Zipper Shape Design
OxyRevo has exclusively designed a super smooth and easy-to-use zipper system for its hyperbaric chambers. The curved zipper design incorporates a gravity sink that separates the chamber zippers and sealing strips, thereby reducing mutual friction and making entry and exit of your hyperbaric chamber much smoother and easier.
Durable Laser Printing, NO Paper Glued
Cheaply made paper stickers that are glued on will eventually fade and peel off with use, resulting in a poor user experience. To provide our customers a better user experience, OxyRevo uses UV laser technology to label all valves in clear marks, resulting in beautiful, durable and textured labels, making your use more convenient.
Extra Quiet Pressure Relief Valves
It can be quite bothersome when you are trying to sleep inside the hyperbaric chamber and the air relief valves outside are too loud. OxyRevo has developed quiet automatic pressure relief valves which help to evenly distribute the airflow, resulting in a significant reduction in noise levels, giving you a peaceful and quiet HBOT environment.
Heat Welded: NO Toxic Glues Or Sewing
Other manufacturers either use glue to seal chamber joints, which can emit a pungent smell and be harmful to the body, or sew the material seams, which poses a significant risk of damage over time. In contrast, OxyRevo’s portable hyperbaric oxygen chambers have seams that are welded using high-frequency heat welding technology, which is both environmentally friendly and non-toxic, also highly durable.
1.2-1.5ATA Pressure Adjustable
In order to help customers ease the discomfort of ear pressure during initial use of your hyperbaric oxygen chambers we have created a pressure adjustment converter that allows you to easily set your chamber pressure to 1.2, 1.3, 1.4 or 1.5 ATA with just one dial turn. This exclusive design is only available in OxyRevo Hyperbaric Chambers and enables you to gradually adjust to the increasing pressure levels of your HBOT session.
Dual Pressure Data Display In And Out
It can be bothersome when pressure readings only can be seen outside the chamber, which may result in incorrect operational instructions and potential harm to your body. At OxyRevo, we use two aviation-grade pressure gauges with high accuracy to ensure that the pressure readings remain consistent and without errors inside and outside the chamber, making the use of HBOT safer for you.
Efficient Air Cooling System
Our efficient and powerful air cooling system will remove the humidity inside the chamber, giving dry and clean air to the chamber. It also cools the incoming air which is drawn into the warm compressor box, ensuring a better comfortable experience when using the chamber in the summer. Additionally, this system is electrically driven, eliminating the need for ice water or freon and requires zero maintenance. This feature adds to the comfort and overall pleasantness when using the chamber.​
Anion Air Purification And Sterilisation
The inclusion of PE sintered filters and an anion generator within the chamber design ensures the effective dispersion of anions (resulting in clean, crisp, fresh air) and the effective removal of 2.5 micron dust particles (PM2.5) (double the removal rate of a hepa filter). This helps to purify the air within the chamber, resulting in a cleaner and fresher environment. Further, a steriliser with water nano technology to remove bacteria, microbials and odours and also kill virus is a perfect solution for disinfection for commercial setups like therapy centres and clinics.
