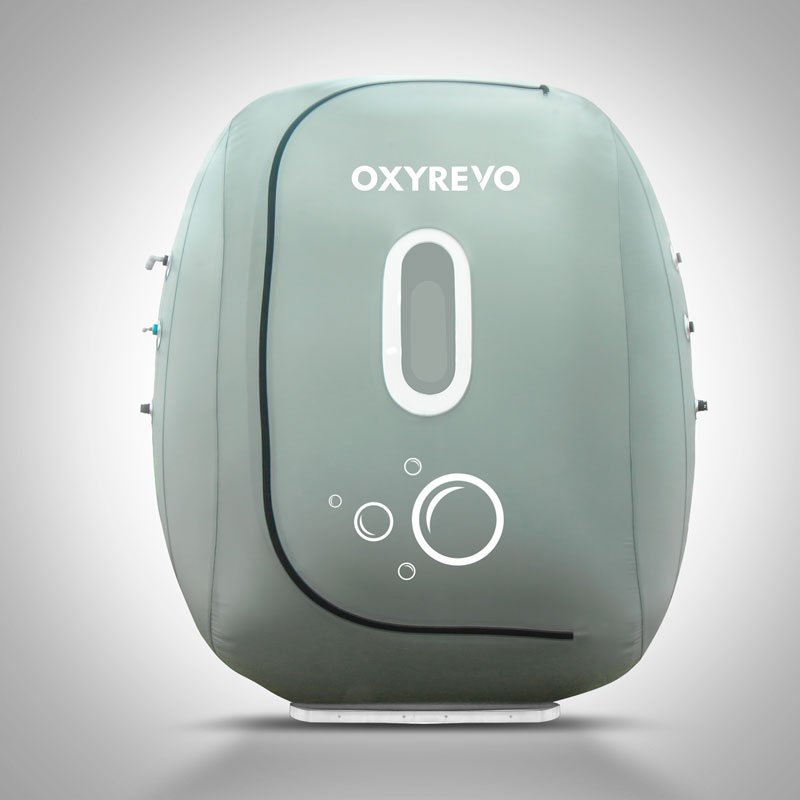

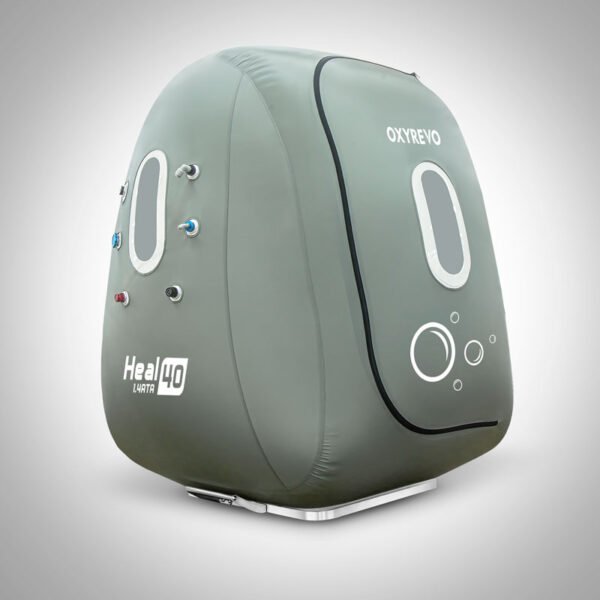

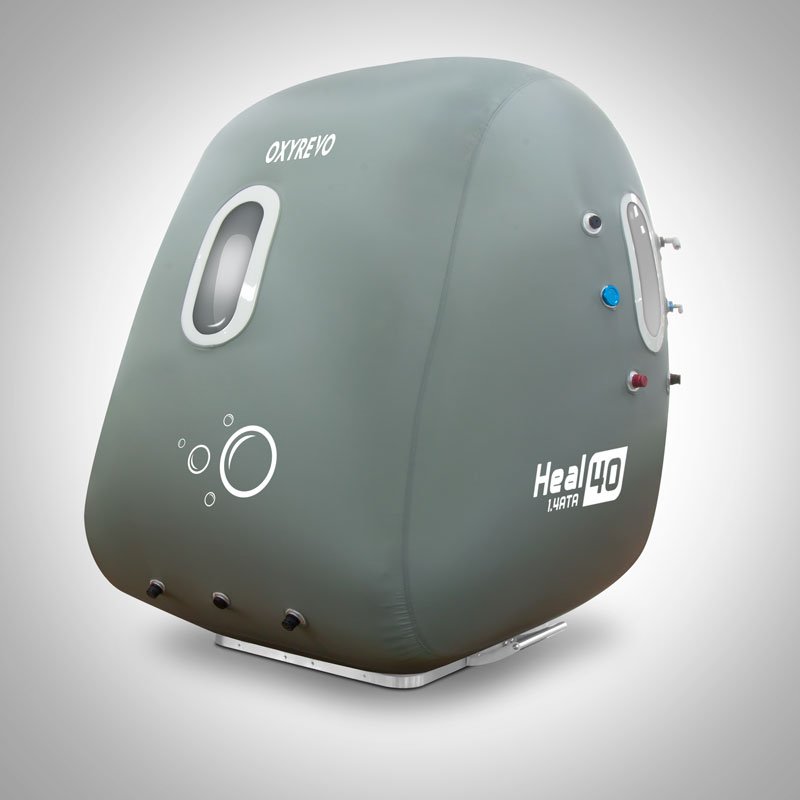

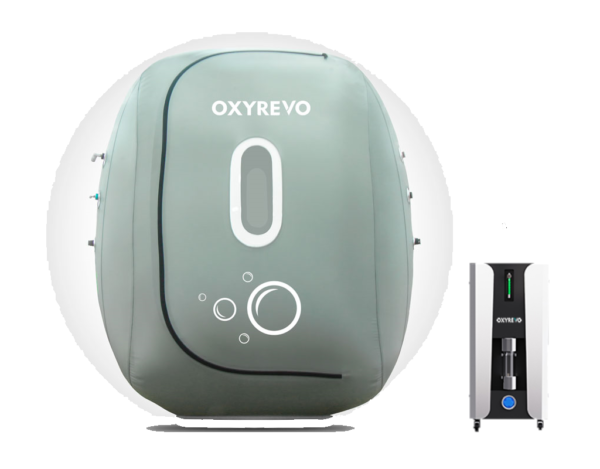

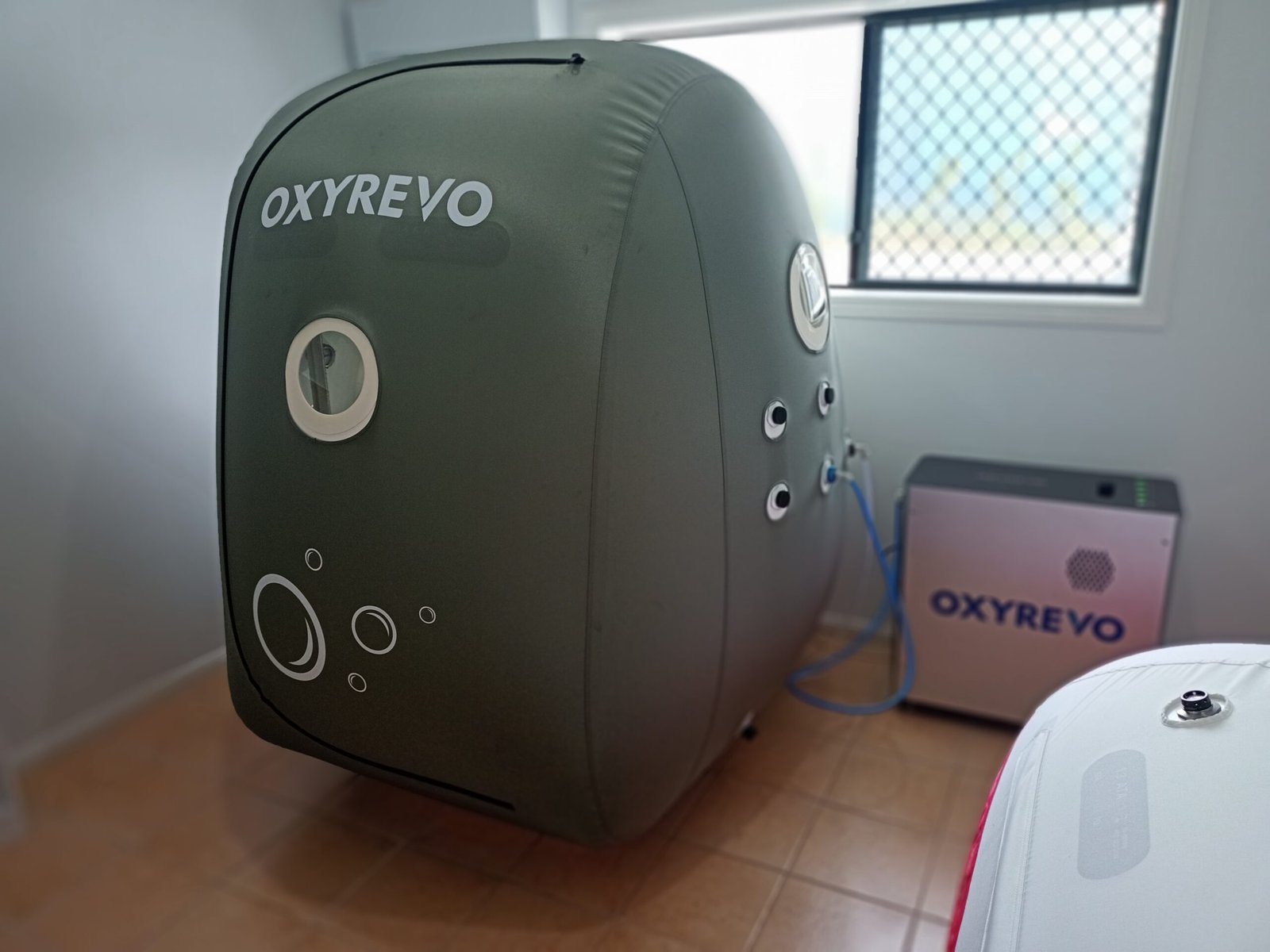

OxyRevo Wheelchair Hyperbaric Chamber Heal 40 1.4ATA
Accessible & Comfortable Design
The OxyRevo Heal 40 is the world’s first soft-type sitting wheelchair hyperbaric chamber built for easy access and exceptional comfort.

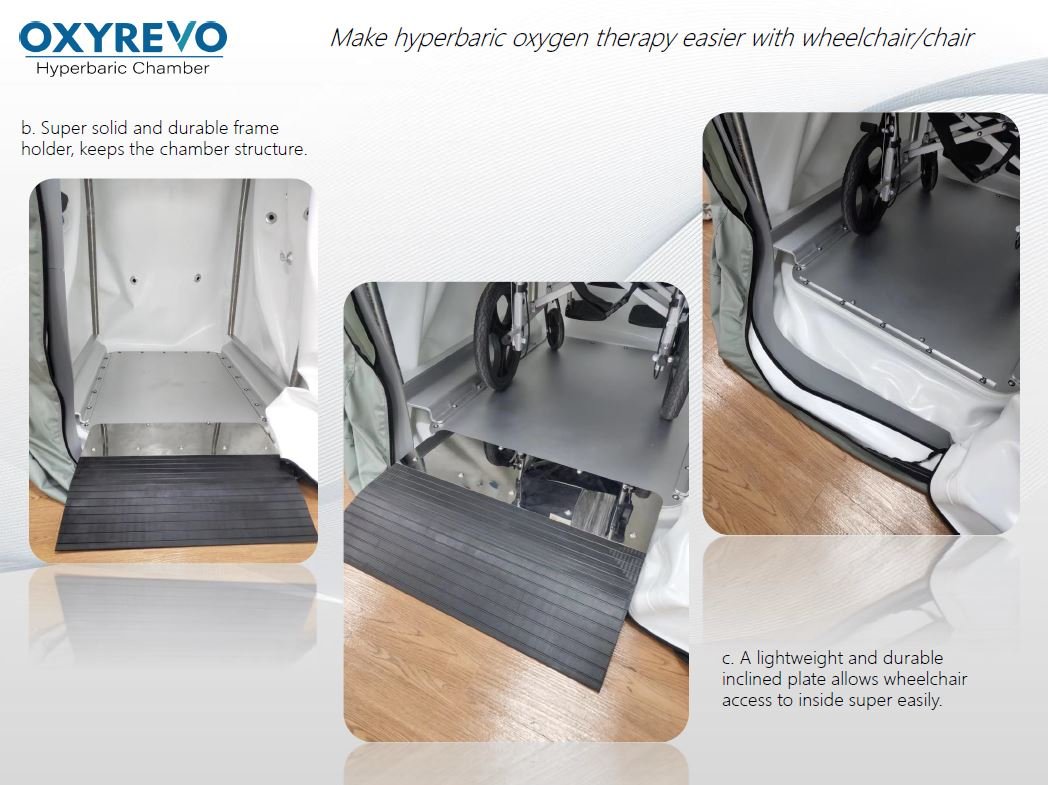

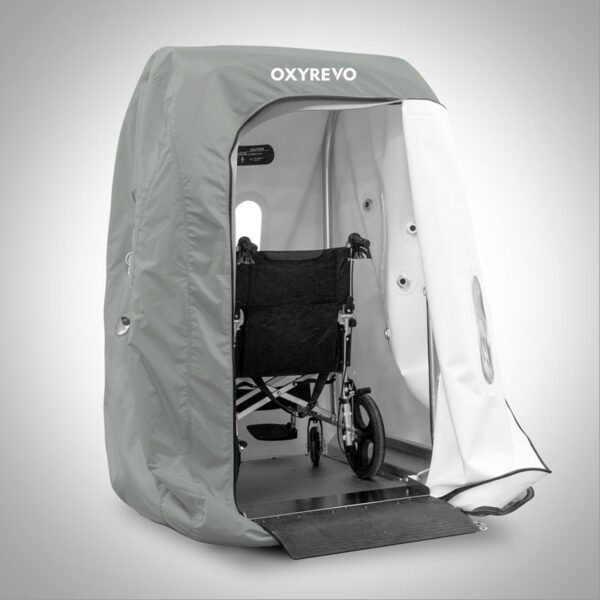

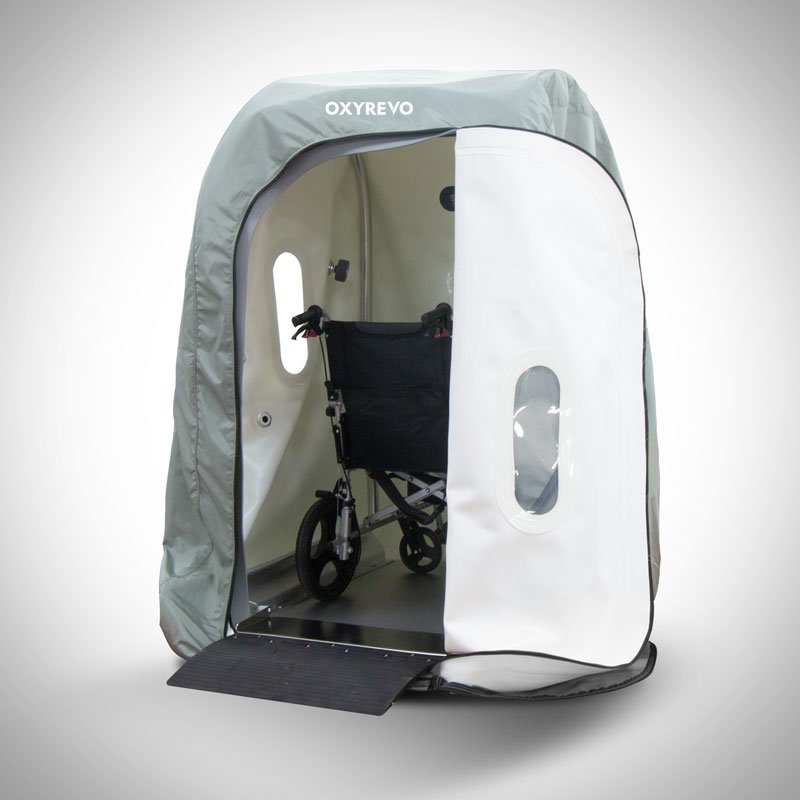

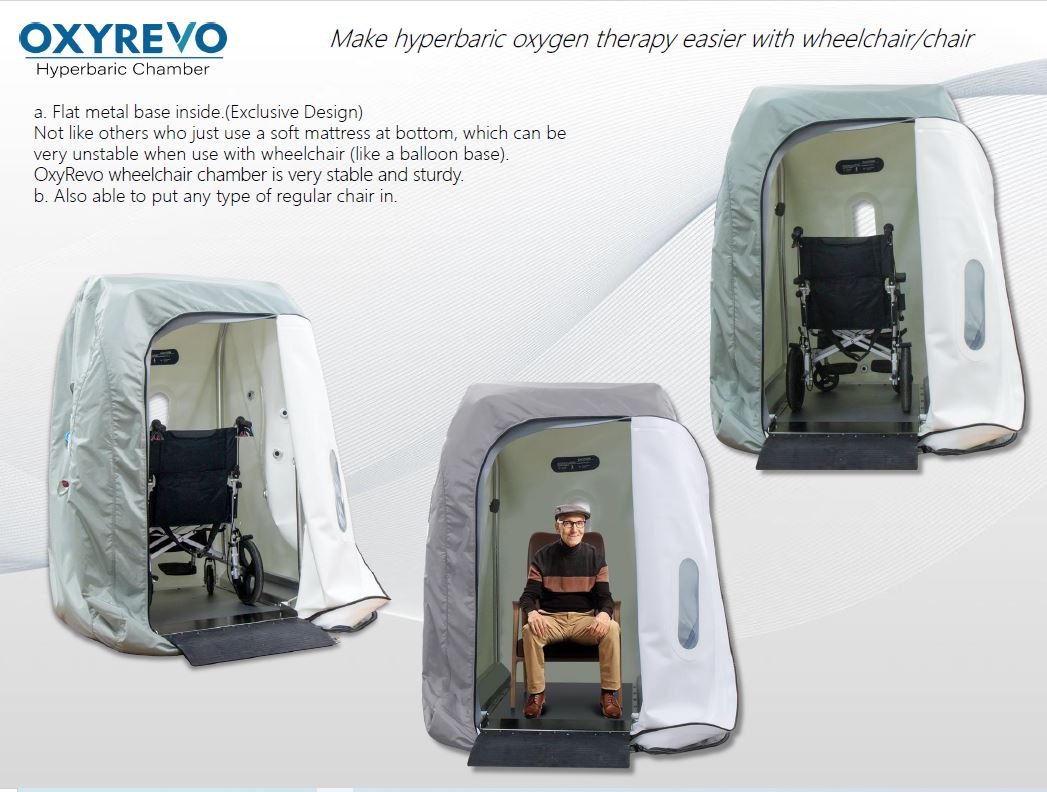

Its spacious 170 cm (L) × 160 cm (W) × 190 cm (H) interior, sturdy aluminium base, and wheelchair ramp make entering and exiting effortless.

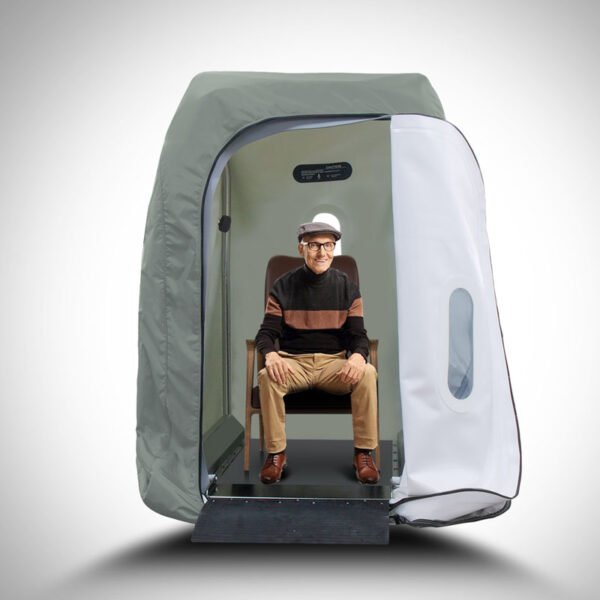

Users can also place a regular chair inside for a stable seated HBOT experience.
Technical Specifications
| Specification | Details |
|---|---|
| Working Pressure | 1.1 / 1.2 / 1.3 / 1.4 ATA (adjustable) |
| Chamber + Frame Weight | 90 kg / 198 lbs |
| Dimensions | L 170 cm × W 160 cm × H 190 cm |
| Windows | 4 large double-layered |
| Material | Custom 5-ply PU (heat-welded, no glues) |
| Sound Level | ≤ 50 dB (operating) |
| Colours | Grey, Black, Dark Blue, Red, Light Blue, Pink, Green, Purple, Gold (custom on request) |
| Oxygen System | 10 L/min @ 95–97 % O₂ (expandable to 20 L/min +) |
| Compressor | 85 L/min oil-free, maintenance-free |
| Air Cooler | 120 L/min dehumidifying, no freon/ice |
| Filters & Sterilisation | Dual air filters + anion generator + water nano steriliser |
| Safety | Emergency deflate valve + dual pressure gauges |
| Optional | Red & Near-Infrared Light Therapy Devices |
| Warranty | 3-Year Standard (extendable) |
Premium OxyRevo Features
-

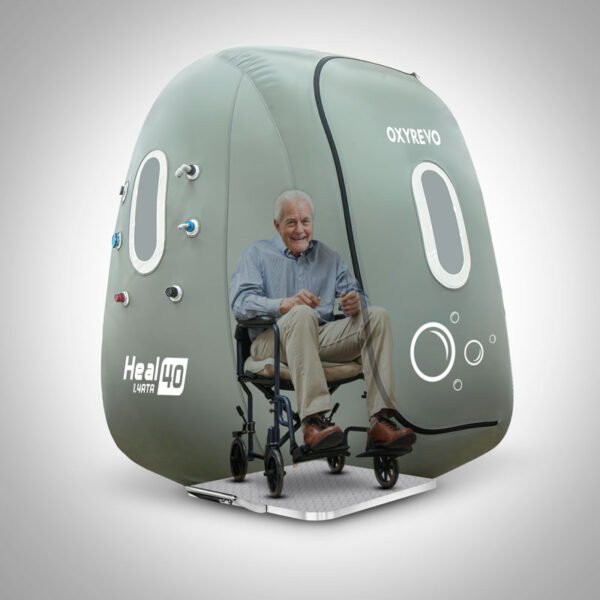

Wheelchair / Chair Compatible Design – Easy ramp access and comfortable seated layout
-
Custom OxyRevo Valves – Precision-engineered for reliability
-
Curved Dual YKK Zippers – 70 % less effort vs straight zippers
-
Laser-Etched Labels – Durable UV-printed (no paper stickers)
-
Dual Pressure Display – Inside & outside aviation-grade gauges
-
Extra Quiet Relief Valves – Even airflow for silent operation
-
Memory Foam Mattress – Pressure relief for longer sessions
-
Anion Air Purification – Removes PM 2.5 and odours for fresh air
-
Heat-Welded Seams – Non-toxic and environmentally safe
Patented Oxygen Bursting Technology
Unlike typical HBOT compressors that lose oxygen output under pressure, OxyRevo’s patented system maintains up to 10 L/min even at 2 ATA, ensuring consistent oxygen delivery and better physiological results.
Efficient Air Cooling & Purification
The built-in air cooler (120 L/min) keeps the chamber dry and comfortable while the anion and nano-water sterilisation system eliminates bacteria, dust, and viruses—ideal for clinics and therapy centres.
Payment & Delivery
-
Finance from ≈ $50 per week (via Handypay)
-
Full payment required before production
-
Lead Time: Made-to-order (≈ 6 weeks)
-
Delivery: Door-to-door service (includes shipping & customs)
-
Contact: WhatsApp +61 473 526 426 | 📧 contact@oxyrevo.com.au
Quick FAQs
Is it wheelchair-friendly? Yes – ramp entry and spacious interior.
Adjustable pressure? Yes – 1.1 to 1.4 ATA.
How quiet is it? ≤ 50 dB with OxyRevo quiet-valve tech.
Need oxygen tanks? No – built-in concentrator (95–97 % O₂).
