OxyRevo Sitting Type Hard Hyperbaric Chamber Space60 1.5 or 1.6ATA

The OxyRevo Space60 sitting type hard hyperbaric chamber delivers clinic-grade HBOT while prioritising seated and reclined comfort. Built from 304 stainless steel and patented polycarbonate, it feels solid, safe, and reassuring. Furthermore, the large transparent front door and two generous side windows brighten the interior and noticeably reduce claustrophobia, while the included premium reclining chair lets users sit or recline throughout longer sessions. Because space affects comfort, the chamber measures 200 cm (L) × 86 cm (W) × 153 cm (H), which feels roomy without overwhelming smaller rooms.

Since protocols differ, Space60 supports 1.5 or 1.6 ATA working pressure depending on the model you select. As a result, clinics can start gently and scale with confidence. Additionally, OxyRevo’s specialised custom made Oxygen Concentrator with patented Oxygen Boosting Technology sustains 95–97% oxygen at 10 L/min even as pressure rises; therefore, delivery remains stable and efficient from start to finish. Consequently, wellness centres, therapy studios, and athletes can run consistent HBOT routines without compromise.

Daily operation is deliberately intuitive. The system features dual control panels and dual digital display screens—inside and outside—so temperature, humidity, and oxygen purity are visible in real time. Moreover, a power-failure safety system automatically releases pressure and drops the door after depressurisation, which significantly enhances user protection. Likewise, a smart door sensor prevents operation unless the door is fully closed, while status indicator lights provide clear visual cues for both users and operators.

Comfort and air quality are addressed comprehensively. The all-in-one unit integrates an oil-free 85 L/min compressor, two 120 L/min cooling/dehumidification machines, anion purification, filtration and air sterilisation/anti-viral technology. Consequently, the chamber maintains a dry, cool, and fresh internal atmosphere without ice or freon. In addition, dual filtration on both the machine and chamber sides, an internal circulation fan, and a soft LED reading light elevate the experience for reading, resting, or meditating.

Sitting Type Hard Hyperbaric Chamber

Build quality extends to every joint. Advanced welding and splicing tightly join metal and polycarbonate; moreover, external aluminium reinforcement rings increase structural integrity under continuous use. Laser-etched valve markings resist wear, solid stainless-steel wheels aid movement, and the pressure switch supports preset customisation (e.g., 1.3/1.4/1.5/1.6 ATA) for different protocols. Finally, the appearance can be tailored in white, black, silver, or blue, with other finishes available on request. Optional upgrades—such as red/near-infrared therapy, bluetooth speaker, external TV bracket, electric or massage chair or multi-function chair, anti-static mat, 15 LPM oxygen concentrator and water chiller air-conditioner and more—make Space60 remarkably versatile.

The OxyRevo Space60 sitting type hard hyperbaric chamber is backed by a 3-year non-commercial warranty with an extension option. Each unit is made to order with an estimated lead time of up to 6 weeks; shipping, customs, and duties are included, and door-to-driveway delivery is standard. Although full payment is required before production, Handypay financing is available from ~$50/week (subject to approval). To proceed, please provide your shipping address, email, and mobile number for the freight team; for questions or customisation, contact WhatsApp +61 473 526 426 or contact@oxyrevo.com.au. This product is intended for wellness and recovery use and is not a medical device; therefore, always follow OxyRevo’s safety guidelines.

Key Features

• Sitting type hard hyperbaric chamber (1.5/1.6 ATA) with 304 stainless-steel body

• Large transparent front door plus two side windows for light and visibility

• Premium reclining chair included for seated or reclined sessions; optional electric/massage/multi-function chair

• Dual control panels and dual digital display screens (inside & outside)

• Power-failure safety system auto-depressurises and drops door

• Smart door sensor; status indicator lights for confident operation

• Patented Oxygen Boosting Technology (95–97% @ 10 L/min)

• Oil-free 85 L/min compressor; 2 × 120 L/min dehumidification cooling units

• Anion purification + sterilisation/anti-viral tech; dual sintered filtration

• Internal circulation fan, LED reading light, optional bluetooth speaker

• Advanced welding with aluminium reinforcement rings

• Solid stainless-steel and nylon wheels for easier relocation

• Customisable pressure presets (1.3/1.4/1.5/1.6 ATA)

• Optional:

  • red & near-infrared therapy light panel (optional dual panel)

  • external TV bracket and internal speaker

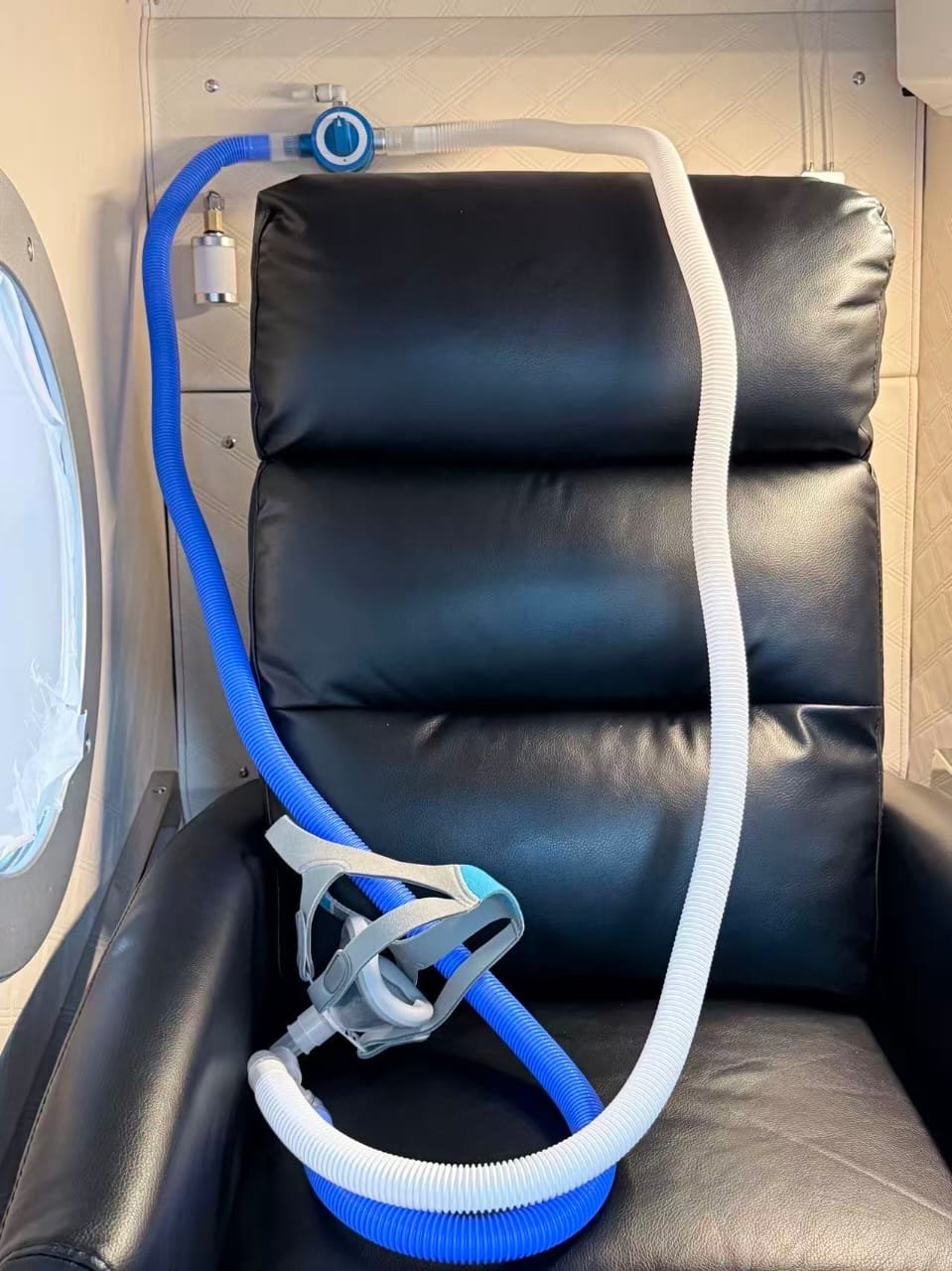

  • built-in breathing system (BIBS) mask system

  • water chiller air-conditioner cooler

  • 15 LPM concentrator

  • anti-static mat

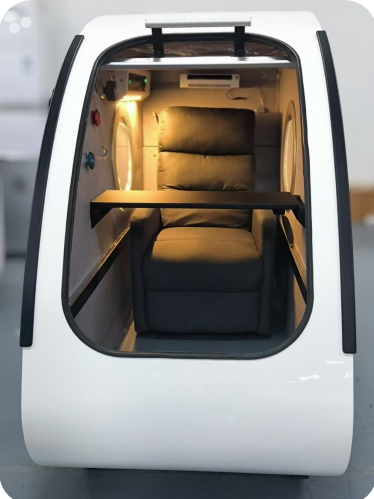

  • working table

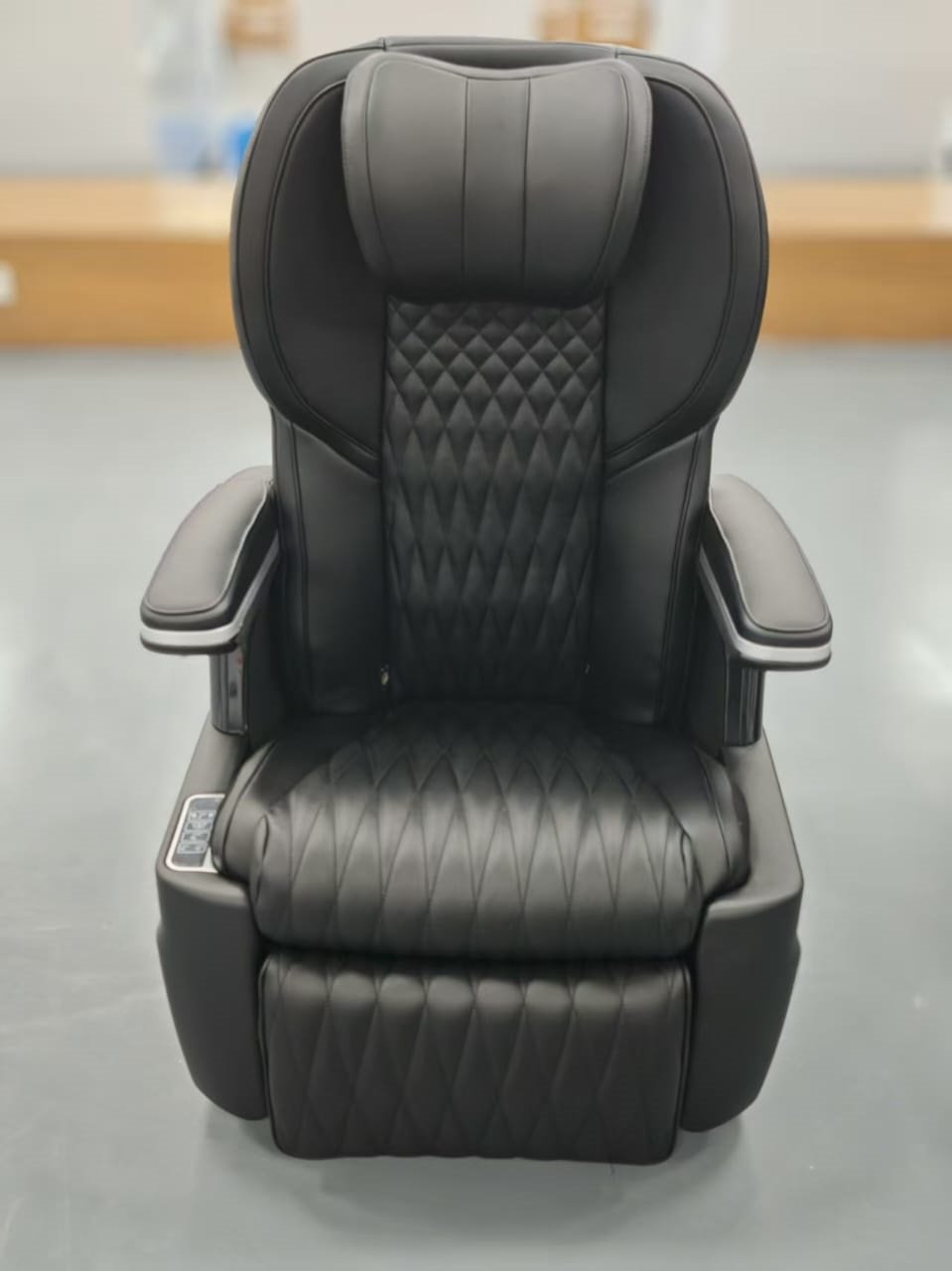

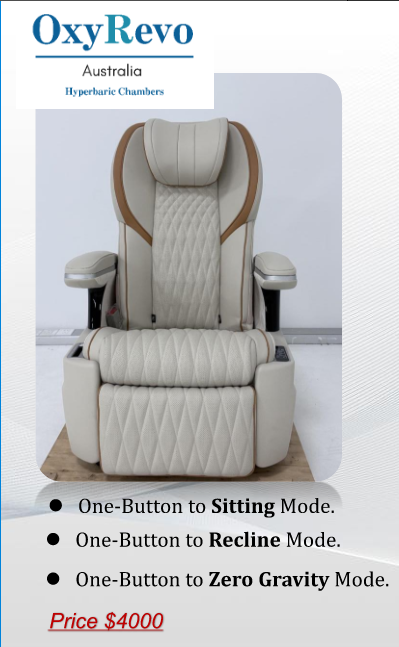

  • electric, massage or multi-function chair

• Please note if the chamber is to be used in a non air-conditioner room it is recommended the option water chiller air-conditioner be purchased

Technical Specifications

• Working Pressure: 1.5 or 1.6 ATA (advise your choice)

• Weight: ~600 kg / 1323 lbs

• Dimensions: 200 cm (L) × 86 cm (W) × 153 cm (H)

• Minimum doorway width to pass: ~96 cm; step height ~56 cm

• Chamber Material: 304 stainless steel

• Window Material: Polycarbonate (patented by Bayer, Germany)

• Windows: 2 large transparent

• Oxygen Purity: 95–97% @ 10 L/min; optional 15 L/min concentrator expandable to 20lpm

• Controls/Displays: Internal & external panels, digital screens (Temp/Humidity/O₂)

• Compressor: 85 L/min, oil-free, low maintenance

• Dehumidifier Cooling: 2 × 120 L/min electric dehumidifier machines

• Filtration: Dual filters (machine + chamber), anion purifier, steriliser/anti-virus, sintered filters

• Extras included as standard: 0–120 min timer, LED reading light, internal fan, phone intercom, recliner chair, folding table

What’s Included

Chamber & Controls

• Inside/Outside: Pressure gauges, deflate valves, control panels, digital display screens

• Phone communication system (in/out)

• Automatic pressure relief valves

• Pressure adjustable switch

• Emergency deflate valve

• LED reading light

• Stainless-steel and nylon wheels

• Internal fan

• Premium reclining chair (sitting/reclining)

• Folding table

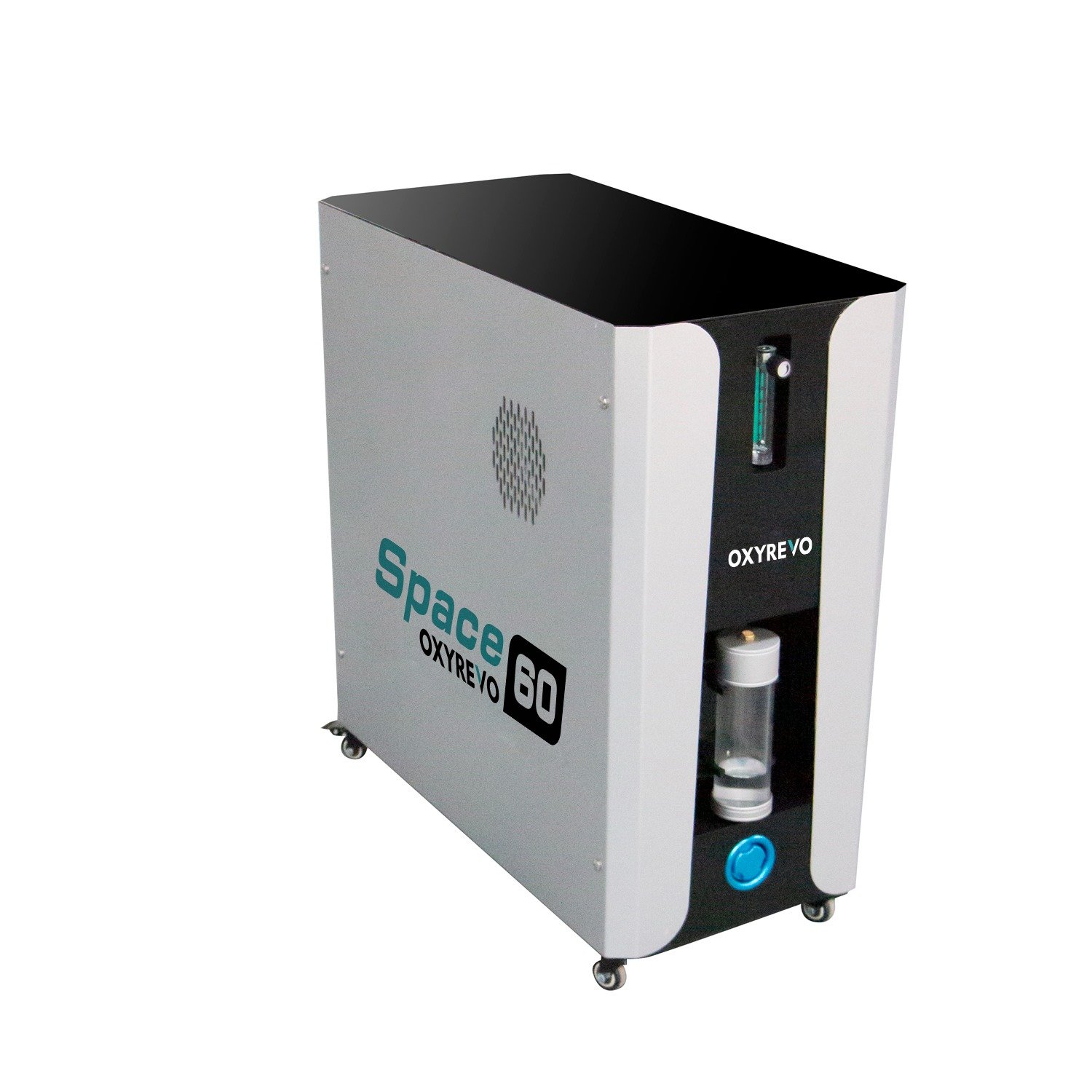

All-in-One Operating Unit

• 1× oil-free air compressor (85 L/min)

• 1× oxygen concentrator (10 L/min, 95–97%) — optional 15 L/min, or 20L/min option

• 2× cooling dehumidification machines (120 L/min)

• Anion air purifier

• Air steriliser/anti-virus system

• Dual PE sintered air filter

• Humidity water container

Accessories

• Oxygen mask

• Spare filters/fuses

• Air/oxygen tubing

• Power cable

Warranty, Shipping & Payment

• 3-year non-commercial / 2 year commercial warranty (extendable)

• Made to order; delivery time up to 12 weeks

• Door-to-driveway delivery; shipping + customs/duties included

• Full payment prior to production; finance from ~$50/week via Handypay

Payment & Delivery

• Payment: Full payment before production (finance from ≈ $50/week via Handypay) CLICK HERE

• Lead Time: Made to order (≈ 6 weeks)

• Delivery: Door-to-door service to driveway/garage only

• Shipping & Duties: Included (customs fees/taxes covered)

• To Order: Provide shipping address, email & mobile for freight updates

• Contact: WhatsApp +61 473 526 426 | Email contact@oxyrevo.com.au
