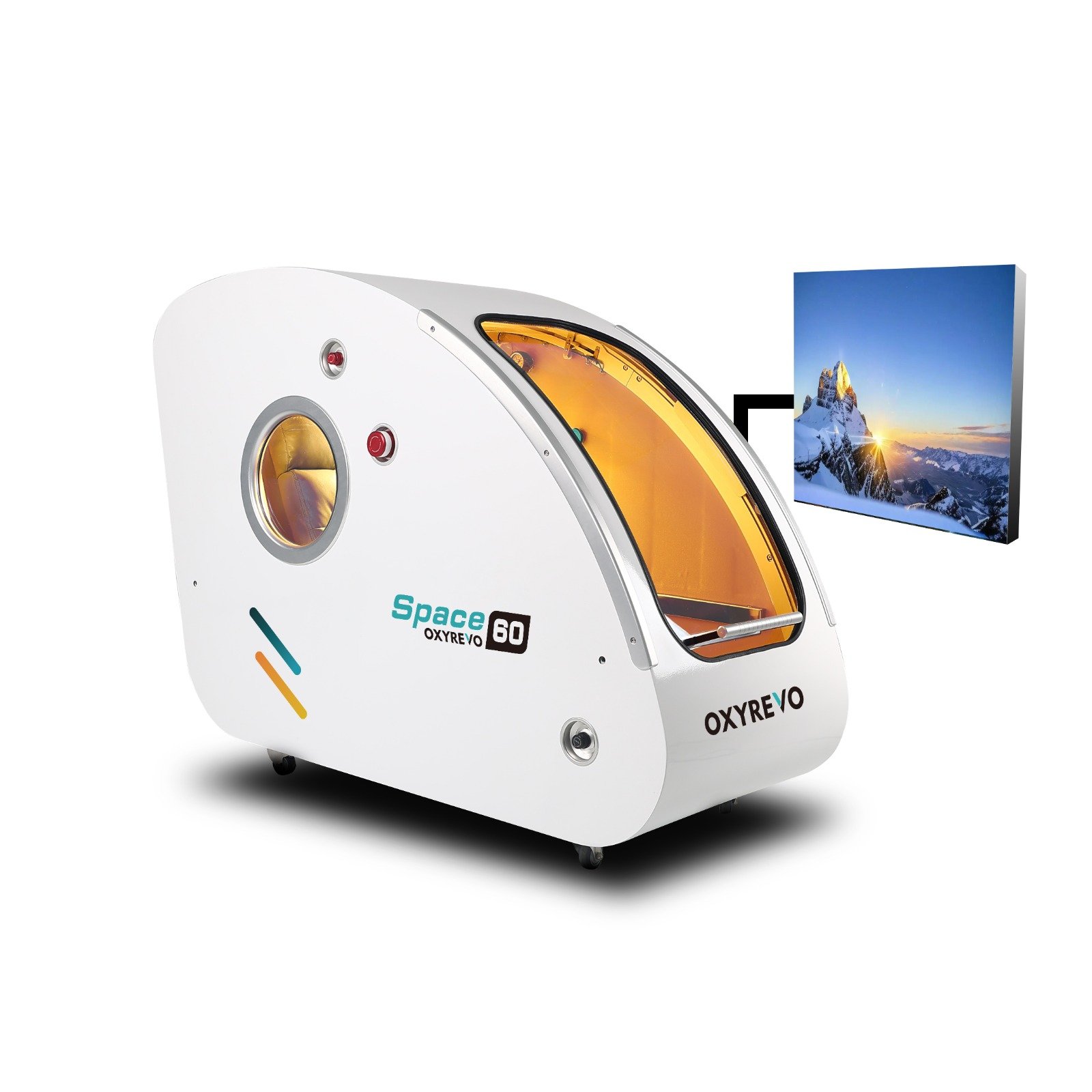

OXYREVO Hard Sitting Hyperbaric Chamber Space60 2ATA
— HARD SHELL TYPE, SITTING DESIGN

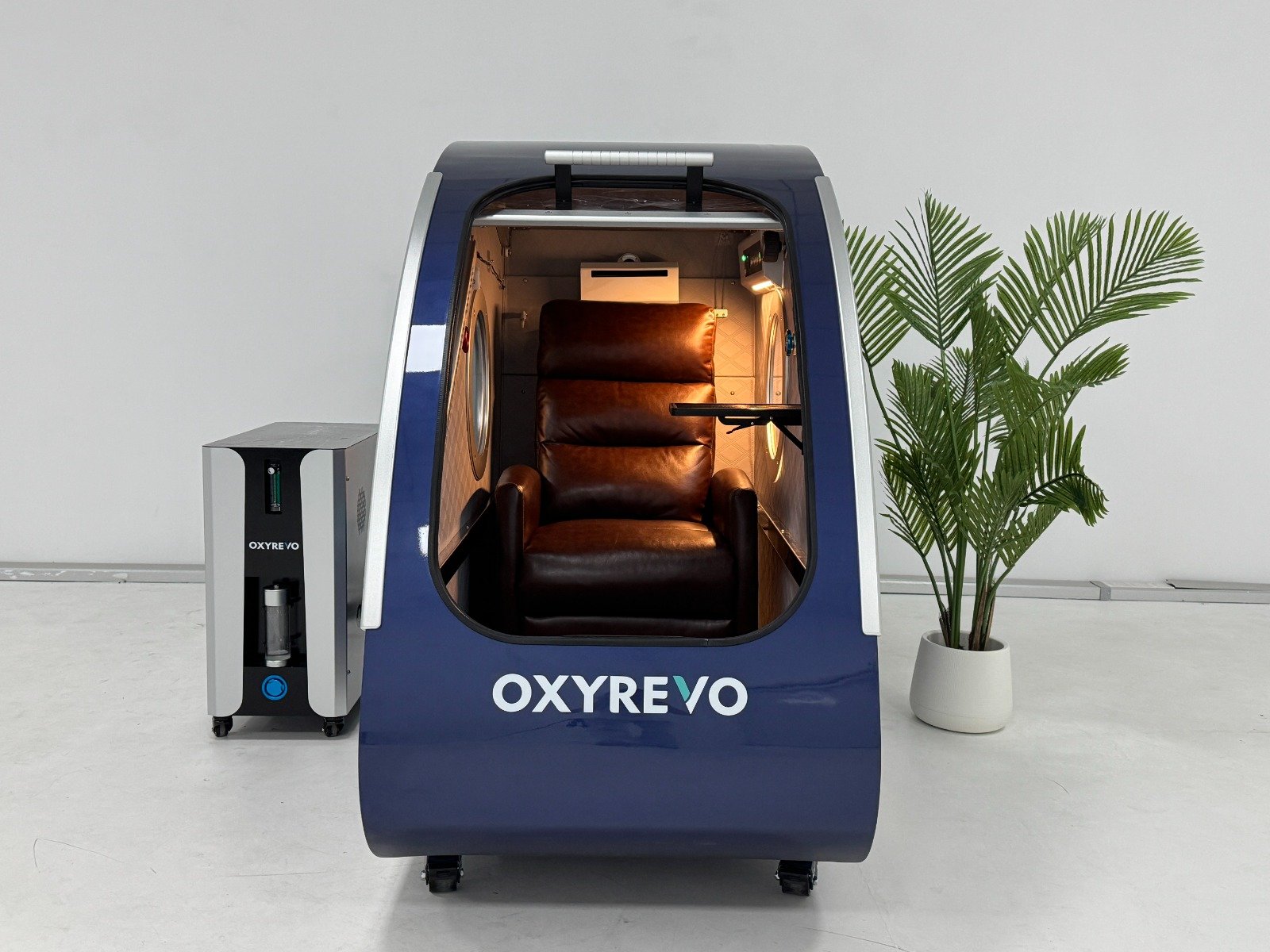

The OxyRevo Space60 2.0ATA hard sitting hyperbaric oxygen chamber, is a hard shell hyperbaric chamber designed for people to sit down inside, also being possible to recline comfortably with a premium folding sitting chair. Working pressure up to 2.0ATA. The 1.5/1.6ATA hard hyperbaric chambers are made by solid stainless steel (grade 304) and polycarbonate material (used in bullet proof glass), the 2.0ATA hard hyperbaric oxygen chambers are made from thicker materials. Equipped with a large transparent door in front, and two big transparent windows each side, making your chamber brighter inside to use and not claustrophobic. It is 200cm in length, making a very roomy space inside for a comfortable use. The OxyRevo Space60 chamber allows the users to use and operate the chamber alone without further assistance outside. The OxyRevo Space60 2.0ATA Hard Sitting Hyperbaric Oxygen Chamber is your best ideal hyperbaric oxygen chamber choice for better comfort and premium use, for home use and commercial places offering HBOT treatment.
Technical Specifications
WORKING PRESSURE: 2.0ATA
WEIGHT: 700KG /1543LBS
LENGTH: 200CM / 79INCHES
WIDTH: 86CM / 34INCHES

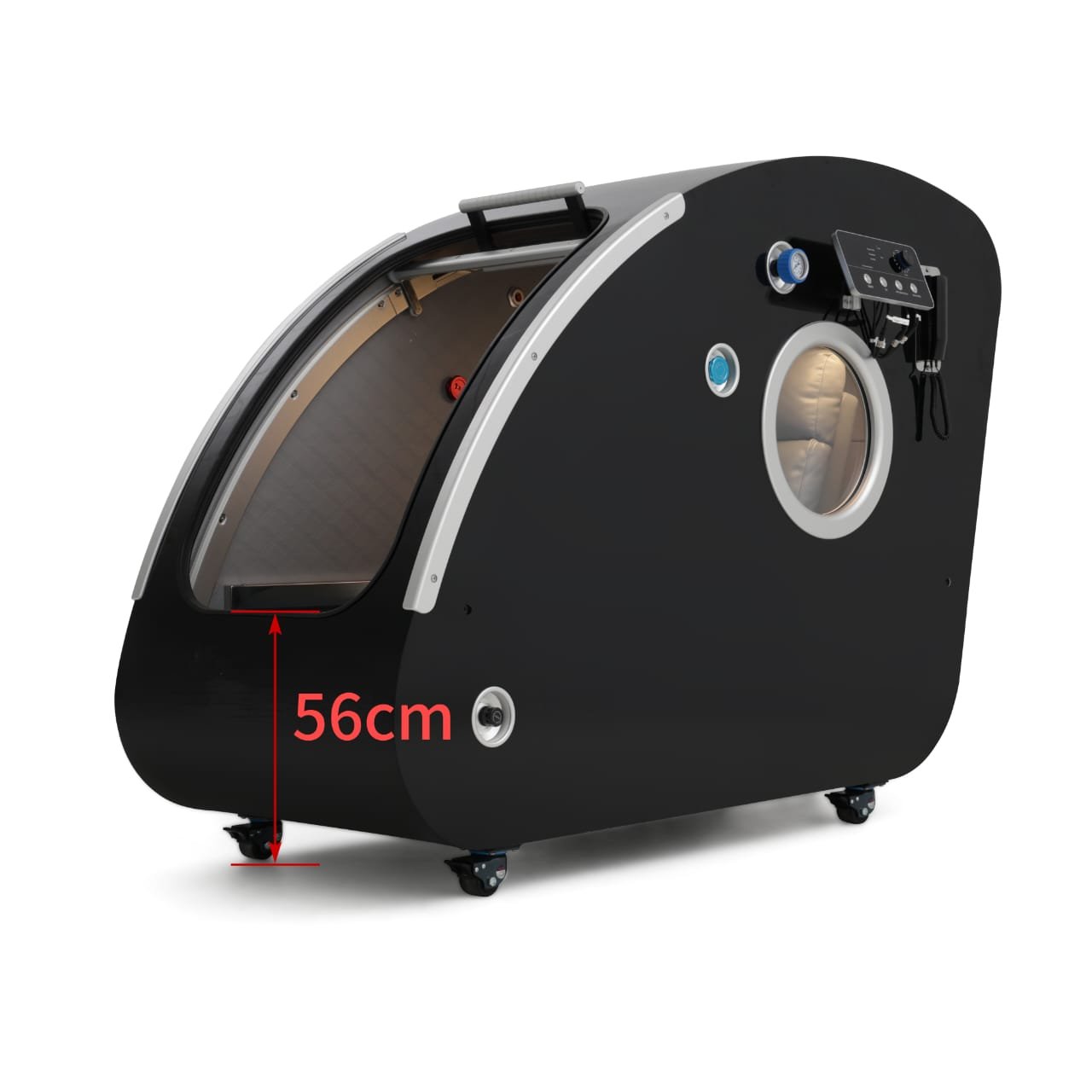

HEIGHT: 153CM / 60INCHES
CHAMBER MATERIAL: STAINLESS STEEL
WINDOWS MATERIAL: POLYCARBONATE(FROM BAYER)
WINDOWS: 2 TRANSPARENT WINDOWS
OXYGEN PURITY: 95-97%
CHAMBER COLOR: WHITE / BLACK / SILVER / BLUE
3 YEAR WARRANTY – option to purchase extended warranty

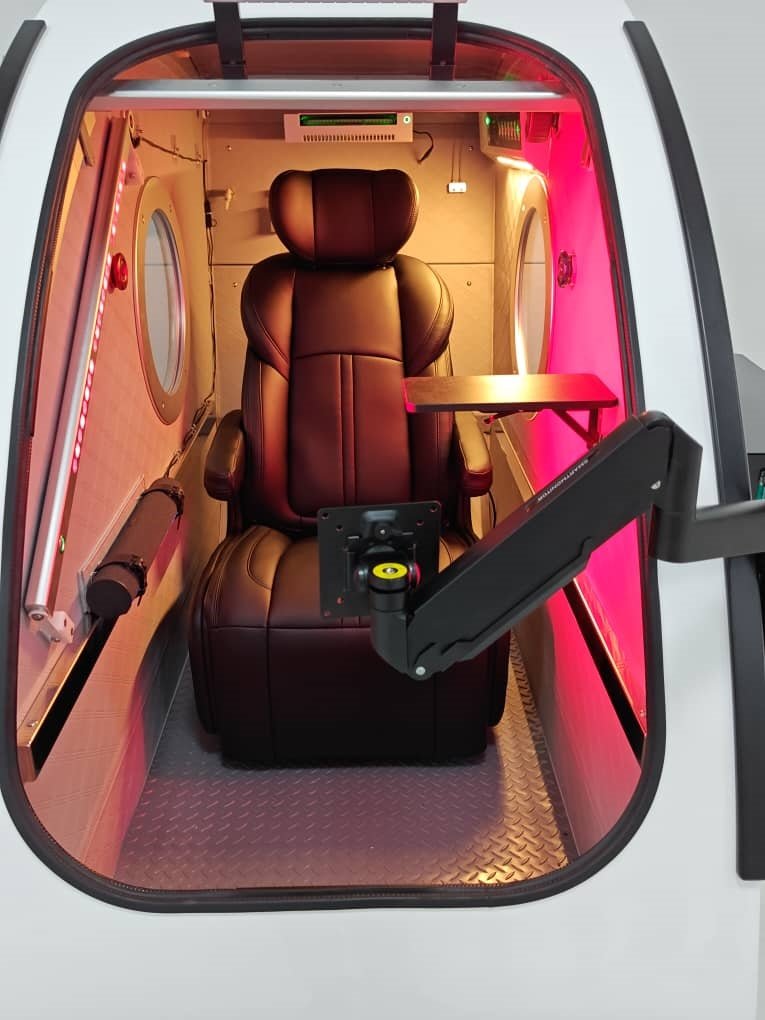

OPTIONAL: Red light and near infrared therapy devices installed
OXYREVO Premium Design
Hard Type: Stainless Steel Material, Solid and Durable
Higher Pressure: 1.5ATA, 1.6ATA or 2ATA Options
Solid Wheels: 4 x Solid Stainless Steel Wheels at base, easy to move
Emergency Valve: Quick Pressure Release in 30s, safety in mind
Timing System: 0-120minutes automatic shutoff timer
LED Reading Light: Eyes Protected LED inside for Reading Convenience
Internal Fan – Circulates Internal Air Flow and Cools
In-Out Communication System: Phone and Speaker Inside and Outside, allows easier communication
Custom Valve: All Valves are Custom Designed and Made by OxyRevo
Dual Air Filters: Two air filters in and out – Machine side and chamber side.
10L Large Oxygen Capacity: 1-10L/min adjustable Oxygen Concentrator with 95-97% Oxygen continuous production, no need for oxygen tanks (can combine more Oxygen Compressors to increase output to 20L\min or more).
Internal/External Dual Pressure Display: Pressure Readings Available Inside and Outside
Internal/External Operation Control: Control Panel and Pressure Release Available Inside and Outside
Air Flow Compressor 85L/min: Oil free no maintenance air compressor
Air Cooler 120L/min: remove humidity from within the chamber effectively, no maintenance
Air Purification, Air Sterilisation and Anti-Viral Technology not seen in any other chamber
Transparent Windows Each End
OxyRevo offers a unique design with two large transparent windows located at the head and foot ends of the hyperbaric oxygen chamber. Made with aviation-grade materials and double-layered for added durability, the windows provide a larger field of view both inside and outside the chamber. Offering a more comfortable experience and reduces feelings of claustrophobia.
New Advanced Welding Process
New advanced welding and splicing processes perfectly fit the metal and polycarbonate together, and the outside is reinforced by an aluminium ring, which is firm, beautiful and won’t deform with use. The chamber body is welded together with 3 pieces of different thickness stainless steel thus higher strength for higher pressure resistance and no bending risk for use over a lengthy time.
In-Out Control Panel And Screen
All hard hyperbaric chambers have two control panels, one inside and one outside, allowing users to operate the chamber yourself, no further assistance required. Also dual digital display screens inside and out show data of Temperature, Humidity and Oxygen Purity inside the chamber via a highly precise sensor, making your operation more convenient.
Power Failure Safety System
A power failure safety system in the unit provides a safety feature if the power shuts off suddenly. The system in the hard chamber will release the pressure automatically and promptly even if the users are completely asleep. The door will drop down automatically after the chamber pressure releases, making the chamber even safer to use.
Smart Door Sensor
Operating the hyperbaric chambers with an incompletely closed door poses a safety risk that may result in harm to oneself or damage to the chamber. Our Hard Hyperbaric Chambers address this issue by incorporating a sensor lock feature that restricts operation of the chamber until the door is fully closed. Additionally, there are indicator lights located inside and outside the chamber, further enhancing its safety features.
Working Pressures Adjustable
The OxyRevo pressure switch valve, featuring an exclusive design, allows users to adjust the working pressure of the chamber at various levels ranging from 1.3/1.5/1.8/2.0ATA (with a custom option of any pressure levels you would like to set up) with the simple turn of a dial. This unique feature enables all users to initiate their hyperbaric oxygen therapy at a lower pressure level and gradually work their way up to higher levels, ensuring a more controlled and comfortable experience and for different protocols.
Efficient Air Cooling System
Our efficient and powerful air cooling system will remove the humidity inside the chamber, giving dry and clean air to the chamber. It also cools the incoming air which is drawn into the warm compressor box, ensuring a better comfortable experience when using the chamber in the summer. Additionally, this system is electrically driven, eliminating the need for ice water or freon and requires zero maintenance. This feature adds to the comfort and overall pleasantness when using the chamber.
Anion Air Purification And Sterilization
The inclusion of an anion generator within the chamber ensures the effective dispersion of anions that are capable of removing 2.5 micron dust particles (PM2.5). This helps to purify the air within the chamber, resulting in a cleaner and fresher environment. Also a steriliser with water nano technology to remove bacteria and odours and also kill virus is a perfect solution for disinfection for commercial setups like therapy centres and clinics.
Inclusions:
–Chamber:
Inside/Outside: Pressure Gauges / Pressure Deflate Valves / Control Panels / Display Screen.
Phone Communication System.
Automatic Pressure Relief Valves.
Pressure Adjustable Switch.
Emergency Deflate Valve.
Reading Lighting LED.
Stainless Steel and Nylon Wheels.
Internal Fan.

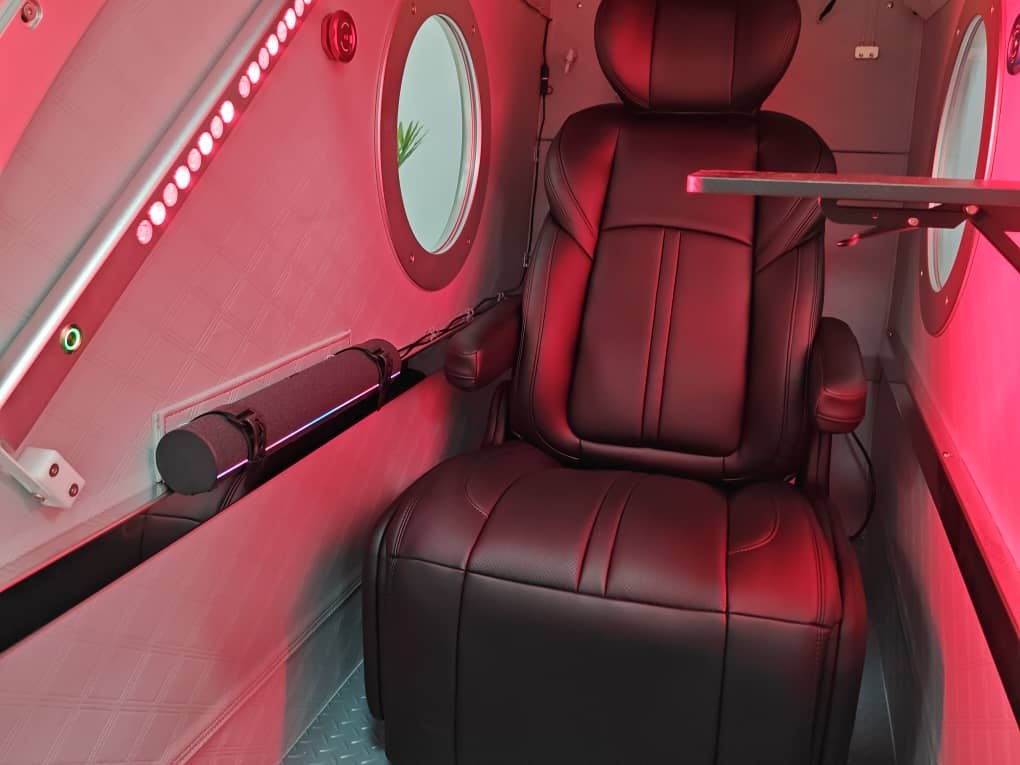

Optional Red Light and Near Infrared Therapy Lights.
Folding Table.

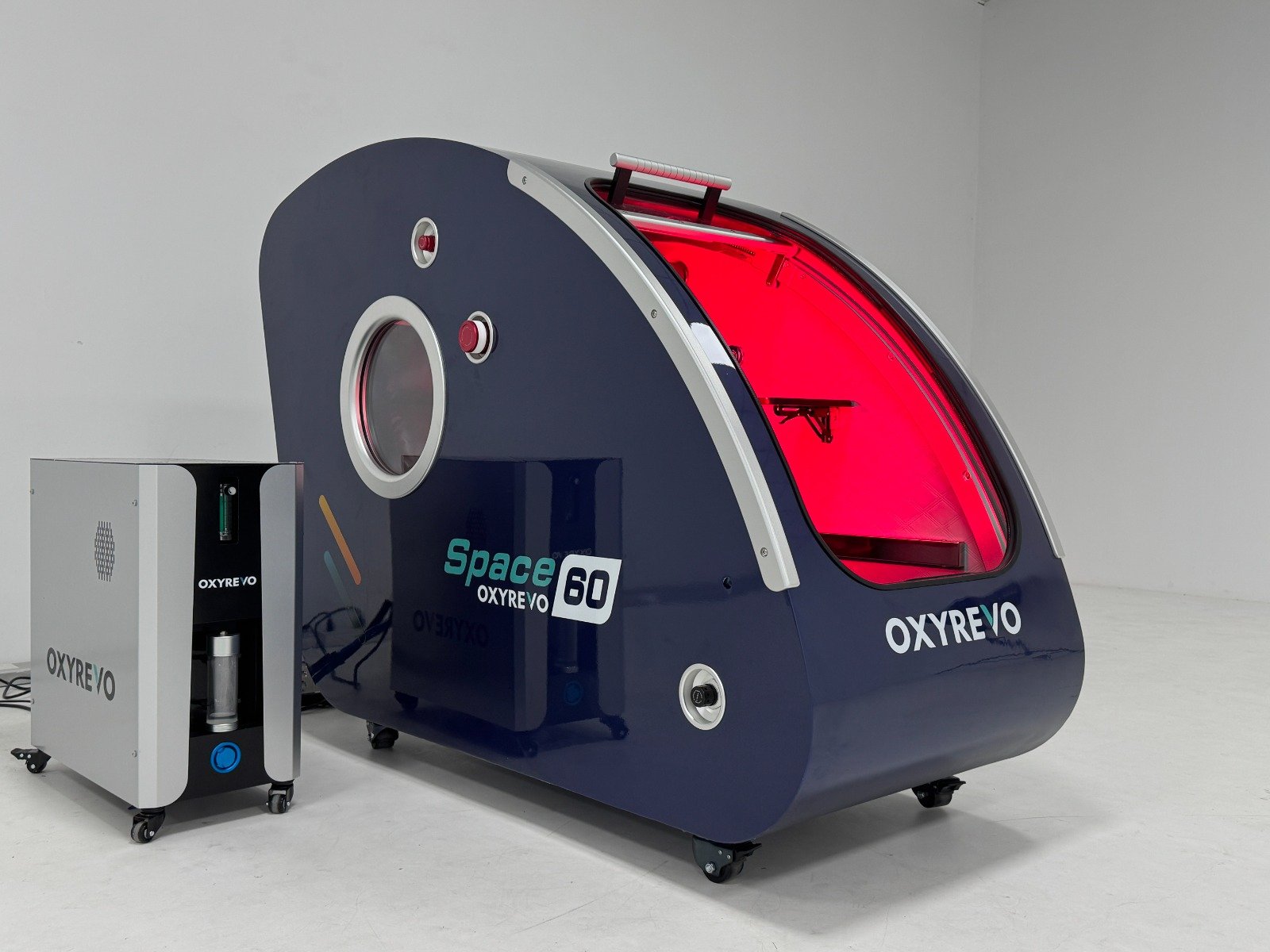

–All-in-one Operating Unit Machine:
1x Oil Free Air Compressor 85 L/min.
1x 10L Oxygen Concentrator 95-97% Oxygen.
2x Cooling Machines 120 L/min.
Anion Air Purifier.
Air Steriliser/Anti-Virus System.
Dual Air Filter.
Humidity Water Container.
–Accessories:

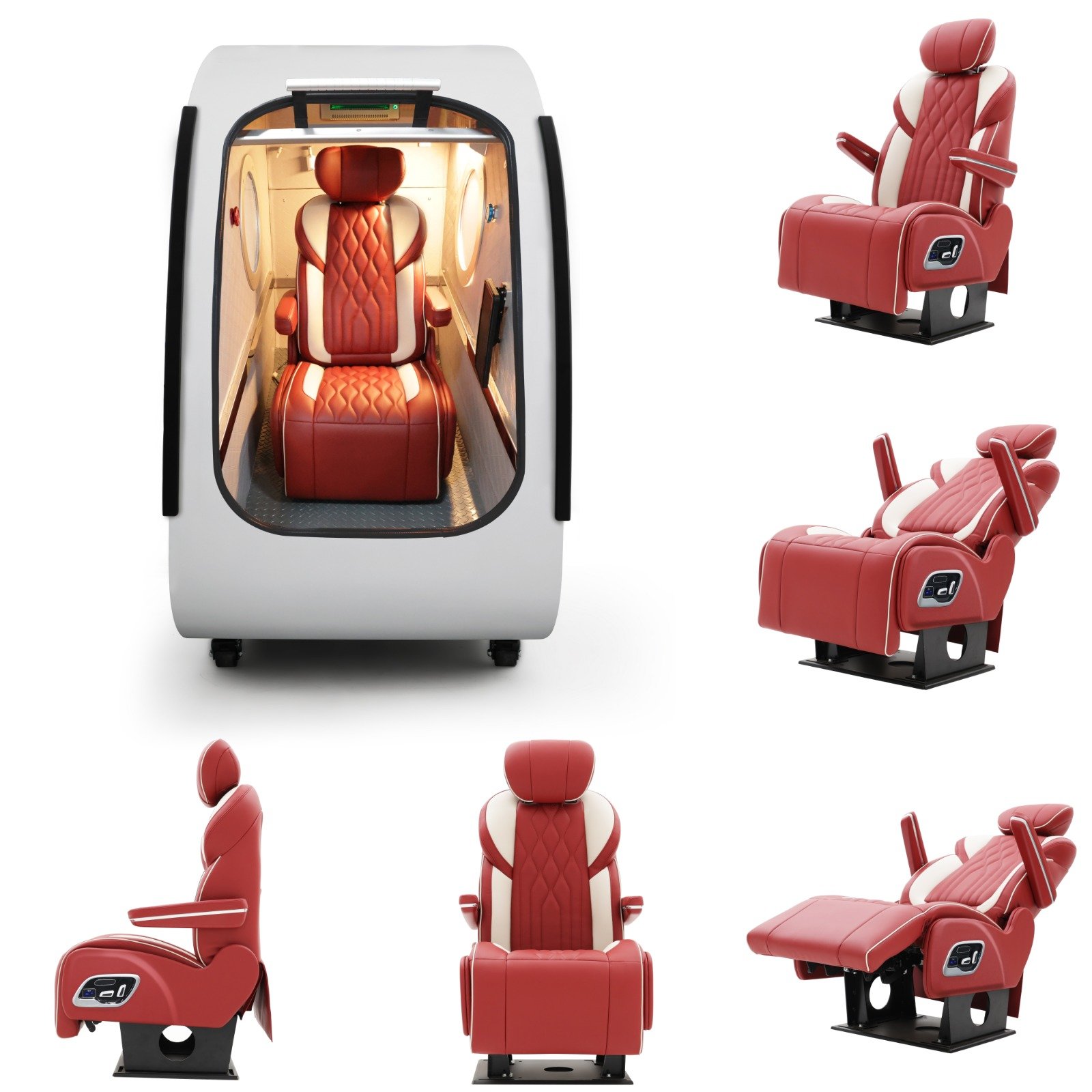

A Premium Folding Chair for Sitting and Reclining.
Oxygen Mask/Spare Filters/Fuses
Air/Oxygen Tubes/Power Cable.
